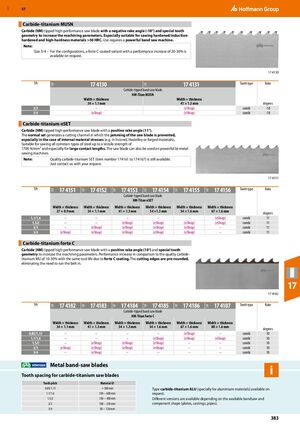

GBP 57 Carbide-titanium MUSN ​ Carbide (HM) tipped high-performance saw blade with a negative rake angle (-18°) and special tooth geometry to increase the machining parameters. Especially suitable for sawing hardened/induction- hardened and high-hardness materials >50 HRC. Use requires a powerful band saw machine. Note: Size 3/4 – For the configurations, a forte C-coated variant with a performance increase of 20-30% is available on request. ​ 17 4130 TPI 17 4130 17 4131 Tooth type Rake 16F 16F Carbide-tipped band saw blade HM-Titan MUSN Width × thickness Width × thickness 34 × 1.1 mm 41 × 1.3 mm ​ degrees 2/3 – (eShop) combi -18 3/4 (eShop) (eShop) combi -18 Carbide-titanium nSET ​ Carbide (HM) tipped high-performance saw blade with a positive rake angle (11°). The normal set generates a cutting channel in which the jamming of the saw blade is prevented, especially in the case of internal material stresses (e.g. in Inconel, Hastelloy or forged materials). Suitable for sawing all common types of steel up to a tensile strength of 1700 N/mm² and especially for large contact lengths. The saw blade can also be used on powerful bi-metal sawing machines. Note: Quality carbide-titanium SET (item number 174161 to 174167) is still available. Just contact us with your request. ​ 17 4151 TPI 17 4151 17 4152 17 4153 17 4154 17 4155 17 4156 Tooth type Rake 16F 16F 16F 16F 16F 16F Carbide-tipped band saw blade HM-Titan nSET Width × thickness Width × thickness Width × thickness Width × thickness Width × thickness Width × thickness 27 × 0.9 mm 34 × 1.1 mm 41 × 1.3 mm 54 ×1.3 mm 54 × 1.6 mm 67 × 1.6 mm ​ degrees 1,1/1,6 – – – – – (eShop) combi 11 1,5/2 – – (eShop) (eShop) (eShop) (eShop) combi 11 2/3 – (eShop) (eShop) (eShop) (eShop) – combi 11 3/4 (eShop) (eShop) (eShop) (eShop) (eShop) – combi 11 Carbide-titanium forte C ​ Carbide (HM) tipped high-performance saw blade with a positive rake angle (10°) and special tooth geometry to increase the machining parameters. Performance increase in comparison to the quality carbide- titanium MU of 10-30% with the same tool life due to forte C coating. The cutting edges are pre-rounded, eliminating the need to run the belt in. 17 ​ 17 4182 TPI 17 4182 17 4183 17 4184 17 4185 17 4186 17 4187 Tooth type Rake 16F 16F 16F 16F 16F 16F Carbide-tipped band saw blade HM-Titan forte C Width × thickness Width × thickness Width × thickness Width × thickness Width × thickness Width × thickness 34 × 1.1 mm 41 × 1.3 mm 54 × 1.3 mm 54 × 1.6 mm 67 × 1.6 mm 80 × 1.6 mm ​ degrees 0,85/1,15 – – – – (eShop) – combi 10 1,1/1,6 – – – (eShop) (eShop) (eShop) combi 10 1,5/2 – (eShop) (eShop) (eShop) – – combi 10 2/3 (eShop) (eShop) (eShop) (eShop) – – combi 10 3/4 – (eShop) – – – – combi 10 Metal band-saw blades Tooth spacing for carbide-titanium saw blades Tooth pitch Material ⌀ 0.85/1.15 > 500 mm Type carbide-titanium ALU (specially for aluminium materials) available on 1.1/1.6 350 − 600 mm request. 1.5/2 150 − 400 mm Different versions are available depending on the available bandsaw and 2/3 100 − 250 mm component shape (plates, castings, pipes). 3/4 50 − 120 mm 383
