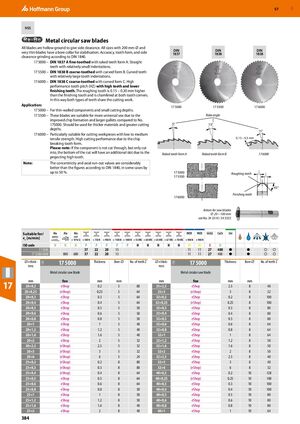

GBP 57 HSS Metal circular saw blades All blades are hollow ground to give side clearance. All sizes with 200 mm ⌀ and DIN DIN DIN very thin blades have a bore collar for stabilisation. Accuracy, tooth form, and side 1837 1838 1838 clearance grinding according to DIN 1840. 17 5000 – DIN 1837 A fine-toothed with raked teeth form A. Straight teeth with relatively small indentations. 17 5500 – DIN 1838 B coarse-toothed with curved form B. Curved teeth with relatively large tooth indentations. 17 6000 – DIN 1838 C coarse-toothed with curved form C. High performance tooth pitch (HZ) with high teeth and lower finishing teeth. The roughing tooth is 0.15 – 0.30 mm higher than the finishing tooth and is chamfered at both tooth corners. In this way both types of teeth share the cutting work. Application: ​17 5000 17 5500​ 17 6000​ 17 5000 – For thin-walled components and small cutting depths. 17 5500 – These blades are suitable for more universal use due to the Rake angle improved chip formation and larger gullets compared to No. 175000. Should be used for thicker materials and greater cutting 5° 15° depths. 15° 17 6000 – Particularly suitable for cutting workpieces with low to medium tensile strength. High cutting performance due to the chip 0,15 – 0,3 mm breaking tooth form. Please note: If the component is not cut through, but only cut into, the bottom of the cut will have an additional slot due to the Raked teeth form A Raked teeth form B 17 6000 projecting high tooth. Note: The concentricity and axial run-out values are considerably better than the figures according to DIN 1840, in some cases by 1_ up to 50 %. 17 5000 Roughing teeth 3 1_ 3 17 5500 45° Finishing teeth 17 6000 Arbors for saw blades ⌀ 20 – 100 mm see No. 34 5510 / 34 5555 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 17 5000 37 22 20 15 11 11 27 400 ● ● ○ ○ 17 5500/​6000 800 600 37 22 20 15 11 11 27 400 ● ● ○ ○ ⌀×thick- 17 5000 Thickness Bore ⌀ No. of teeth Z ⌀×thick- 17 5000 Thickness Bore ⌀ No. of teeth Z 17A 17A ness ness Metal circular saw blade Metal circular saw blade mm fine mm mm ​ mm fine mm mm ​ 17 20×0,2 20×0,25 eShop (eShop) 0.2 0.25 5 5 80 64 25×2,5 25×3 eShop (eShop) 2.5 3 8 8 40 32 20×0,3 eShop 0.3 5 64 32×0,2 eShop 0.2 8 100 20×0,4 eShop 0.4 5 64 32×0,25 (eShop) 0.25 8 100 20×0,5 eShop 0.5 5 50 32×0,3 eShop 0.3 8 80 20×0,6 eShop 0.6 5 50 32×0,4 eShop 0.4 8 80 20×0,8 eShop 0.8 5 50 32×0,5 eShop 0.5 8 80 20×1 eShop 1 5 40 32×0,6 eShop 0.6 8 64 20×1,2 eShop 1.2 5 40 32×0,8 eShop 0.8 8 64 20×1,6 eShop 1.6 5 40 32×1 eShop 1 8 64 20×2 eShop 2 5 32 32×1,2 eShop 1.2 8 50 20×2,5 (eShop) 2.5 5 32 32×1,6 eShop 1.6 8 50 20×3 (eShop) 3 5 32 32×2 eShop 2 8 50 20×6 (eShop) 6 5 24 32×2,5 eShop 2.5 8 40 25×0,2 (eShop) 0.2 8 80 32×3 eShop 3 8 40 25×0,3 (eShop) 0.3 8 80 32×6 (eShop) 6 8 32 25×0,4 (eShop) 0.4 8 64 40×0,2 eShop 0.2 10 128 25×0,5 eShop 0.5 8 64 40×0,25 (eShop) 0.25 10 100 25×0,6 eShop 0.6 8 64 40×0,3 eShop 0.3 10 100 25×0,8 eShop 0.8 8 50 40×0,4 eShop 0.4 10 100 25×1 eShop 1 8 50 40×0,5 eShop 0.5 10 80 25×1,2 eShop 1.2 8 50 40×0,6 eShop 0.6 10 80 25×1,6 eShop 1.6 8 40 40×0,8 eShop 0.8 10 80 25×2 eShop 2 8 40 40×1 eShop 1 10 64 384
