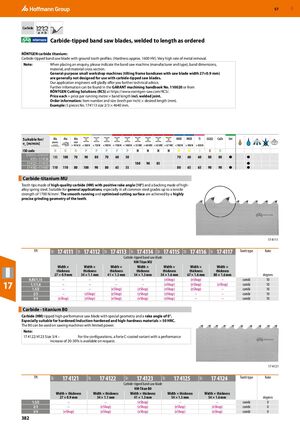

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 382

GBP 57 Carbide a≠b Carbide-tipped band saw blades, welded to length as ordered RÖNTGEN carbide titanium: Carbide-tipped band saw blade with ground tooth profiles. (Hardness approx. 1600 HV). Very high rate of metal removal. Note: When placing an enquiry, please indicate the band saw machine (manufacturer and type), band dimensions, material, and material cross section. General-purpose small workshop machines (tilting frame bandsaws with saw blade width 27×0.9 mm) are generally not designed for use with carbide-tipped saw blades. Our application engineers will gladly offer you further technical advice. Further information can be found in the GARANT machining handbook No. 110020 or from RÖNTGEN Cutting Solutions (RCS) at https://www.roentgen-saw.com/RCS/. Price each = price per running metre × band length incl. welded joint. Order information: Item number and size (teeth per inch) × desired length (mm). Example: 5 pieces No. 174113 size 2/3 × 4640 mm. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 17 4111–​17 4117/​ 100 100 70 90 80 70 60 50 70 60 60 80 80 ● ● 4151–​17 4156 17 4121–​17 4131 100 90 85 ● 17 4182–​17 4187 110 110 80 100 90 80 65 55 80 65 65 90 90 ● ● Carbide-titanium MU ​ Tooth tips made of high-quality carbide (HM) with positive rake angle (10°) and a backing made of high- alloy spring steel. Suitable for general applications, especially in all common steel grades up to a tensile strength of 1700 N/mm2. The smooth running and optimised cutting surface are achieved by a highly precise grinding geometry of the teeth. ​ 17 4111 TPI 17 4111 17 4112 17 4113 17 4114 17 4115 17 4116 17 4117 Tooth type Rake 16F 16F 16F 16F 16F 16F 16F Carbide-tipped band saw blade HM-Titan MU Width × Width × Width × Width × Width × Width × Width × thickness thickness thickness thickness thickness thickness thickness 27 × 0.9 mm 34 × 1.1 mm 41 × 1.3 mm 54 × 1.3 mm 54 × 1.6 mm 67 × 1.6 mm 80 × 1.6 mm ​ degrees 0,85/1,15 – – – – (eShop) (eShop) – combi 10 17 1,1/1,6 1,5/2 – – – – – (eShop) – (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) – combi combi 10 10 2/3 – (eShop) (eShop) (eShop) (eShop) – – combi 10 3/4 (eShop) (eShop) (eShop) (eShop) (eShop) – – combi 10 Carbide - titanium B0 ​ Carbide (HM) tipped high-performance saw blade with special geometry and a rake angle of 0°. Especially suitable for hardened/induction-hardened and high-hardness materials > 50 HRC. The B0 can be used on sawing machines with limited power. Note: 17 4122/4123 Size 3/4 – For the configurations, a forte C-coated variant with a performance increase of 20-30% is available on request. ​ 17 4121 TPI 17 4121 17 4122 17 4123 17 4125 17 4124 Tooth type Rake 16F 16F 16F 16F 16F Carbide-tipped band saw blade HM-Titan B0 Width × thickness Width × thickness Width × thickness Width × thickness Width × thickness 27 × 0.9 mm 34 × 1.1 mm 41 × 1.3 mm 54 × 1.3 mm 54 × 1.6 mm ​ degrees 1,5/2 – – (eShop) – – combi 0 2/3 – (eShop) (eShop) (eShop) (eShop) combi 0 3/4 (eShop) (eShop) (eShop) (eShop) (eShop) combi 0 382
