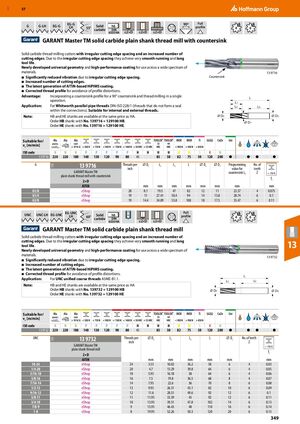

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 349

GBP 57 EG-G 90º Full G G-LH EG-G LH Solid h6 profile 55° carbide DIN 4 6 6535 HA ≤2×D ≤2×D ≤2×D GARANT Master TM solid carbide plain shank thread mill with countersink Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth running and long tool life. Newly developed universal geometry and high-performance coating for use across a wide spectrum of materials. 13 9716 ■ Significantly reduced vibration due to irregular cutting edge spacing. Countersink ■ Increased number of cutting edges. ■ The latest generation of AlTiN-based HiPIMS coating. ■ Corrected thread profile for avoidance of profile distortions. Advantage: Incorporating a countersink profile for a 90° countersink and thread milling in a single L operation. L1 Application: For Whitworth parallel pipe threads DIN-ISO 228/1 (threads that do not form a seal LC LS within the connections). Suitable for internal and external threads. Note: HB and HE shanks are available at the same price as HA. ⌀ DC ⌀ DS Order HB shank: with No. 139716 + 129100 HB. ⌀ D1 Order HE shank: with No. 139716 + 129100 HE. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 13 9716 220 220 180 140 130 120 90 80 45 85 50 82 75 50 120 200 ● ● ● ● G 13 9716 Threads per ⌀ DC Lc Ls L ⌀ Ds ⌀ D1 Programming No. of 11D inch value for teeth GARANT Master TM countersink L1 Z < 750 N plain shank thread mill with countersink fz 2×D AlTiN ​ mm mm mm mm mm mm mm ​ mm G1/8 eShop 28 8.1 19.5 47 82 12 11 22.57 4 0.075 G1/4 eShop 19 11 27.41 50.4 94 14 13.8 28.74 6 0.1 G3/8 eShop 19 14.4 34.09 55.8 108 18 17.5 35.47 6 0.11 EG-UNC Full UNC UNC-LH EG-UNC LH Solid h6 profile 60° carbide DIN 4 6 6535 HA ≤2×D ≤2×D GARANT Master TM solid carbide plain shank thread mill Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth running and long tool life. Newly developed universal geometry and high-performance coating for use across a wide spectrum of 13 materials. 13 9732 ■ Significantly reduced vibration due to irregular cutting edge spacing. ■ Increased number of cutting edges. ■ The latest generation of AlTiN-based HiPIMS coating. ■ Corrected thread profile for avoidance of profile distortions. L Application: For UNC unified coarse threads ASME-B1.1. LS LC Note: HB and HE shanks are available at the same price as HA Order HB shank: with No. 139732 + 129100 HB ⌀ DC ⌀ DS Order HE shank: with No. 139732 + 129100 HE Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 13 9732 220 220 180 140 130 120 90 80 45 85 50 82 75 50 120 200 ● ● ● ● UNC 13 9732 Threads per ⌀ DC Lc Ls L ⌀ Ds No. of teeth 11D inch Z GARANT Master TM < 750 N plain shank thread mill fz 2×D AlTiN ​ mm mm mm mm mm ​ mm 10-24 eShop 24 3.55 10.02 36.2 58 6 4 0.03 1/4-20 eShop 20 4.7 13.29 39.8 64 6 4 0.05 5/16-18 eShop 18 5.95 16.18 38 64 6 4 0.06 3/8-16 eShop 16 7.5 19.8 36.5 68 8 4 0.07 7/16-14 eShop 14 7.95 22.6 36 70 8 6 0.08 1/2-13 eShop 13 9.95 26.31 43.1 82 10 6 0.09 9/16-12 eShop 12 11.6 28.51 49.6 92 12 6 0.1 5/8-11 eShop 11 11.95 33.39 45 92 12 6 0.11 3/4-10 eShop 10 13.95 39.31 47.8 102 14 6 0.13 7/8-9 eShop 9 15.95 46.43 48 110 16 6 0.14 1-8 eShop 8 19.95 52.26 50.3 120 20 6 0.15 349
