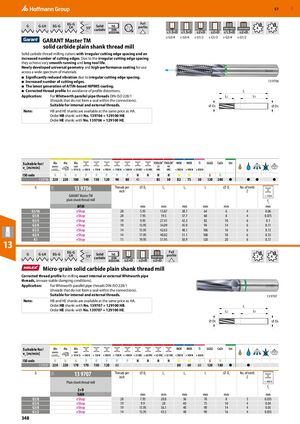

GBP 57 EG-G Full G G-LH EG-G LH Solid h6 profile 55° carbide DIN 4 6 6535 HA ≤1.5×D ≤1.5×D ≤2×D ≤2×D ≤1.5×D ≤2×D ≥ G3/4 ≥ G3/4 ≤ G1/2 ≤ G1/2 ≥ G3/4 ≤ G1/2 GARANT Master TM solid carbide plain shank thread mill Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth running and long tool life. Newly developed universal geometry and high-performance coating for use across a wide spectrum of materials. ■ Significantly reduced vibration due to irregular cutting edge spacing. ■ Increased number of cutting edges. 13 9706 ■ The latest generation of AlTiN-based HIPIMS coating. ■ Corrected thread profile for avoidance of profile distortions. L Application: For Whitworth parallel pipe threads DIN-ISO 228/1 LC LS (threads that do not form a seal within the connections). Suitable for internal and external threads. ⌀ DC ⌀ DS Note: HB and HE shanks are available at the same price as HA. Order HB shank: with No. 139706 + 129100 HB. Order HE shank: with No. 139706 + 129100 HE. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 13 9706 220 220 180 140 130 120 90 80 45 85 50 82 75 50 120 200 ● ● ● ● G 13 9706 Threads per ⌀ DC Lc Ls L ⌀ Ds No. of teeth 11D inch Z GARANT Master TM < 750 N plain shank thread mill fz AlTiN ​ mm mm mm mm mm ​ mm G1/16 eShop 28 5.95 15.87 38.7 64 6 4 0.06 G1/8 eShop 28 7.95 19.5 37.7 68 8 4 0.075 G1/4 eShop 19 9.95 27.41 42.3 82 10 6 0.1 G3/8 eShop 19 13.95 34.09 45.9 94 14 6 0.11 G1/2 eShop 14 15.95 42.63 48.1 106 16 6 0.13 G3/4 eShop 14 17.95 40.82 51.1 108 18 6 0.15 G1 eShop 11 19.95 51.95 50.9 120 20 6 0.17 13 Full EG-G G G-LH EG-G LH Solid h6 profile 55° carbide DIN 3 4 6535 HA ≤2×D ≤2×D ≤2×D Micro-grain solid carbide plain shank thread mill Corrected thread profile for milling exact internal or external Whitworth pipe threads, (ensure stable clamping conditions). Application: For Whitworth parallel pipe threads DIN-ISO 228/1 (threads that do not form a seal within the connections). Suitable for internal and external threads. 13 9707 Note: HB and HE shanks are available at the same price as HA. Order HB shank: with No. 139707 + 129100 HB. L Order HE shank: with No. 139707 + 129100 HE. LC LS ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 13 9707 220 220 170 170 150 120 80 80 60 60 120 180 ● ● G 13 9707 Threads per ⌀ DC Lc Ls L ⌀ Ds No. of teeth 12J inch Z Plain shank thread mill < 900 N fz 2×D TiAlN ​ mm mm mm mm mm ​ mm G1/8 eShop 28 7.95 20.8 36 70 8 3 0.035 G1/4 eShop 19 9.9 28 40 75 10 4 0.04 G3/8 eShop 19 13.95 36.1 40 90 14 4 0.05 G1/2 eShop 14 15.95 43.5 48 90 16 4 0.055 348
