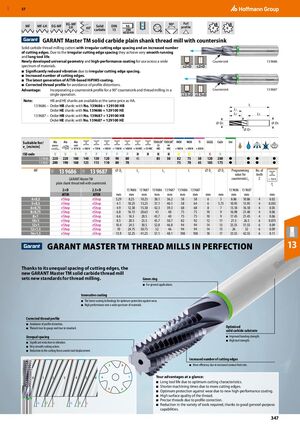

GBP 57 EG-MF 90º Full MF MF-LH EG-MF LH Solid DIN h6 profile 60° carbide 13 DIN 4 6 6535 HA GARANT Master TM solid carbide plain shank thread mill with countersink Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth running and long tool life. Newly developed universal geometry and high-performance coating for use across a wide Countersink 13 9686 spectrum of materials. ≤2×D ≤2×D ■ Significantly reduced vibration due to irregular cutting edge spacing. ■ Increased number of cutting edges. ■ The latest generation of AlTiN-based HiPIMS coating. ■ Corrected thread profile for avoidance of profile distortions. Advantage: Incorporating a countersink profile for a 90° countersink and thread milling in a Countersink 13 9687 single operation. ≤2.5×D ≤2.5×D Note: HB and HE shanks are available at the same price as HA. 13 9686 – Order HB shank: with No. 139686 + 129100 HB L Order HE shank: with No. 139686 + 129100 HE L1 LC LS 13 9687 – Order HB shank: with No. 139687 + 129100 HB Order HE shank: with No. 139687 + 129100 HE ⌀ DC ⌀ DS ⌀ D1 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 13 9686 220 220 180 140 130 120 90 80 45 85 50 82 75 50 120 200 ● ● ● ● 13 9687 200 190 160 125 115 110 80 70 75 70 45 105 175 ● ● ● ● MF 13 9686 13 9687 ⌀ DC Lc Ls L ⌀ Ds ⌀ D1 Programming No. of 11D 11D value for teeth GARANT Master TM countersink L1 Z < 750 N plain shank thread mill with countersink fz 2×D 2.5×D ​ 13 9686 13 9687 13 9686 13 9687 13 9686 13 9687 ​ ​ 13 9686 13 9687 ​ ​ AlTiN AlTiN mm mm mm mm mm mm mm mm mm mm mm ​ mm 4×0,5 eShop eShop 3.29 8.25 10.25 38.1 36.2 58 58 6 5 8.86 10.86 4 0.02 5×0,5 eShop eShop 4.1 10.25 13.25 37.1 40.1 58 64 6 5.75 10.95 13.95 4 0.035 6×0,75 eShop eShop 4.9 12.38 15.38 42.3 39.3 68 68 8 7 13.18 16.18 4 0.05 8×0,75 eShop eShop 6.8 16.13 20.63 43 40 75 75 10 9 16.98 21.48 4 0.06 8×1 eShop eShop 6.6 16.5 20.5 43.7 40 75 75 10 9 17.45 21.45 4 0.06 10×1 eShop eShop 8.5 20.5 25.5 45.7 50.7 82 92 12 11 21.5 26.5 6 0.075 12×1 eShop eShop 10.4 24.5 30.5 52.8 46.8 94 94 14 13 25.55 31.55 6 0.09 12×1,5 eShop eShop 10 24.75 30.75 52 46 94 94 14 13 26 32 6 0.09 16×1,5 eShop eShop 13.9 32.25 41.25 57.1 48.1 108 108 18 17 33.55 42.55 6 0.11 GARANT MASTER TM THREAD MILLS IN PERFECTION 13 Thanks to its unequal spacing of cutting edges, the new GARANT Master TM solid carbide thread mill sets new standards for thread milling. Green ring ■ For general applications. Innovative coating ■ The latest coating technology for optimum protection against wear. ■ High performance over a wide spectrum of materials. Corrected thread profile ■ Avoidance of profile distortion. ■ Threads true to gauge and true to standard. Optimised solid carbide substrate Unequal spacing ■ Improved bending strength. ■ High tool strength. ■ Significant reduction in vibration. ■ Very smooth cutting action. ■ Reduction in the cutting forces avoids tool displacement. Increased number of cutting edges 5 6 ■ More efficiency due to increased contour feed rate. 6 1 2 3 4 5 6 4 1 Your advantages at a glance: ■ Long tool life due to optimum cutting characteristics. ■ Shorter machining times due to more cutting edges. 3 2 ■ Optimum protection against wear due to new high-performance coating. ■ High surface quality of the thread. ■ Precise threads due to profile correction. α β γ α β γ ■ Reduction in the variety of tools required, thanks to good general-purpose capabilities. 347
