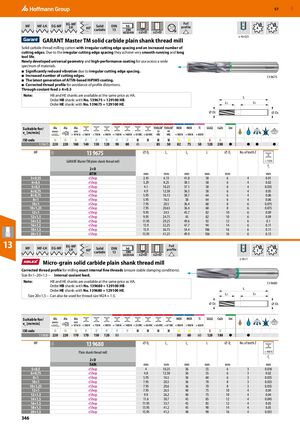

GBP 57 EG-MF Full MF MF-LH EG-MF LH Solid DIN h6 profile 60° carbide 13 DIN 4 6 6535 HA ≤2×D ≤2×D ≥ 4×0,5 GARANT Master TM solid carbide plain shank thread mill Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth running and long tool life. Newly developed universal geometry and high-performance coating for use across a wide spectrum of materials. ■ Significantly reduced vibration due to irregular cutting edge spacing. ■ Increased number of cutting edges. 13 9675 ■ The latest generation of AlTiN-based HiPIMS coating. ■ Corrected thread profile for avoidance of profile distortions. Through-coolant feed ≥ 4×0.5 Note: HB and HE shanks are available at the same price as HA. L Order HB shank: with No. 139675 + 129100 HB. LC LS Order HE shank: with No. 139675 + 129100 HE. ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 13 9675 220 220 180 140 130 120 90 80 45 85 50 82 75 50 120 200 ● ● ● ● MF 13 9675 ⌀ DC Lc Ls L ⌀ Ds No. of teeth Z 11D GARANT Master TM plain shank thread mill < 750 N fz 2×D AlTiN mm mm mm mm mm ​ mm 3×0,35 eShop 2.45 6.13 41.8 58 6 4 0.01 4×0,5 eShop 3.29 8.25 38.1 58 6 4 0.02 5×0,5 eShop 4.1 10.25 37.1 58 6 4 0.035 6×0,75 eShop 4.9 12.38 36.5 58 6 4 0.05 8×0,75 eShop 5.95 16.13 38.7 64 6 4 0.06 8×1 eShop 5.95 16.5 38 64 6 4 0.06 10×1 eShop 7.95 20.5 36.4 68 8 6 0.075 10×1,25 eShop 7.95 20.63 36.4 68 8 6 0.075 12×1 eShop 9.95 24.5 45.7 82 10 6 0.09 12×1,5 eShop 9.95 24.75 45 82 10 6 0.09 14×1,5 eShop 11.95 29.25 49.6 92 12 6 0.1 16×1,5 eShop 13.9 32.25 47.7 94 14 6 0.11 18×1,5 eShop 15.9 36.75 54.4 106 16 6 0.11 20×1,5 eShop 15.95 41.25 49.9 106 16 6 0.13 13 MF MF-LH EG-MF EG-MF LH Solid 60° carbide DIN h6 Full profile 3 4 13 DIN 6535 HA ≤2×D ≤2×D ≥ 8×1 Micro-grain solid carbide plain shank thread mill Corrected thread profile for milling exact internal fine threads (ensure stable clamping conditions). Size 8×1–20×1,5 – Internal coolant feed. Note: HB and HE shanks are available at the same price as HA. 13 9680 Order HB shank: with No. 139680 + 129100 HB. L Order HE shank: with No. 139680 + 129100 HE. LC LS Size 20×1,5 – Can also be used for thread size M24 × 1.5. ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 13 9680 220 220 170 170 150 120 80 80 60 60 120 180 ● ● MF 13 9680 ⌀ DC Lc Ls L ⌀ Ds No. of teeth Z 12J Plain shank thread mill < 900 N fz 2×D TiAlN mm mm mm mm mm ​ mm 5×0,5 eShop 4 10.25 36 55 6 3 0.018 6×0,75 eShop 4.8 12.38 36 55 6 3 0.02 8×1 eShop 5.95 16.5 36 60 6 3 0.035 10×1 eShop 7.95 20.5 36 70 8 3 0.035 10×1,25 eShop 7.95 20.6 36 70 8 3 0.035 12×1 eShop 7.95 26.5 40 75 10 4 0.04 12×1,5 eShop 9.9 26.2 40 75 10 4 0.04 14×1,5 eShop 11.6 30.7 45 85 12 4 0.045 16×1,5 eShop 11.95 33.7 45 85 12 4 0.05 18×1,5 eShop 13.95 41.2 45 90 14 4 0.05 20×1,5 eShop 15.95 41.2 48 90 16 4 0.055 346
