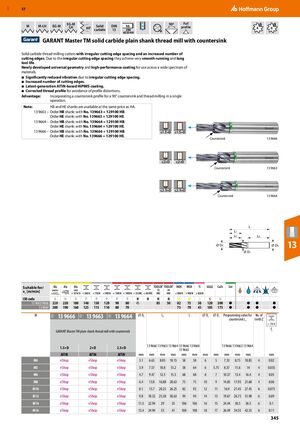

GBP 57 EG-M 90º Full M M-LH EG-M LH Solid DIN h6 profile 60° carbide 13 DIN 4 6 6535 HA GARANT Master TM solid carbide plain shank thread mill with countersink Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth running and long tool life. Newly developed universal geometry and high-performance coating for use across a wide spectrum of materials. ■ Significantly reduced vibration due to irregular cutting edge spacing. ■ Increased number of cutting edges. ■ Latest-generation AlTiN-based HiPIMS coating. ■ Corrected thread profile for avoidance of profile distortions. Advantage: Incorporating a countersink profile for a 90° countersink and thread milling in a single operation. Note: HB and HE shanks are available at the same price as HA. 13 9663 – Order HB shank: with No. 139663 + 129100 HB. Order HE shank: with No. 139663 + 129100 HE. 13 9664 – Order HB shank: with No. 139664 + 129100 HB. Order HE shank: with No. 139664 + 129100 HE. 13 9666 – Order HB shank: with No. 139666 + 129100 HB. ≤1.5×D ≤1.5×D Order HE shank: with No. 139666 + 129100 HE. Countersink 13 9666 ≤2×D ≤2×D Countersink 13 9663 ≤2.5×D ≤2.5×D Countersink 13 9664 L L1 LC LS ⌀ DC ⌀ D1 ⌀ DS 13 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 13 9663/​9666 220 220 180 140 130 120 90 80 45 85 50 82 75 50 120 200 ● ● ● ● 13 9664 200 190 160 125 115 110 80 70 75 70 45 105 175 ● ● ● ● M 13 9666 13 9663 13 9664 ⌀ DC Lc L ⌀ Ds ⌀ D1 Programming value for No. of 11D 11D 11D countersink L1 teeth Z < 750 N fz GARANT Master TM plain shank thread mill with countersink ​ 13 9666 13 9663 13 9664 13 9666 13 9664 ​ ​ 13 9666 13 9663 13 9664 ​ ​ 1.5×D 2×D 2.5×D 13 9663 AlTiN AlTiN AlTiN mm mm mm mm mm mm mm mm mm mm mm ​ mm M4 eShop eShop eShop 3.1 6.63 8.05 10.15 58 58 6 5 7.33 8.75 10.85 4 0.02 M5 eShop eShop eShop 3.9 7.57 10.8 13.2 58 64 6 5.75 8.37 11.6 14 4 0.035 M6 eShop eShop eShop 4.7 9.47 12.5 15.5 68 68 8 7 10.37 13.4 16.4 4 0.05 M8 eShop eShop eShop 6.4 13.8 16.88 20.63 75 75 10 9 14.85 17.93 21.68 4 0.06 M10 eShop eShop eShop 8.1 15.7 20.25 26.25 82 92 12 11 16.9 21.45 27.45 6 0.075 M12 eShop eShop eShop 9.8 18.32 25.38 30.63 94 94 14 13 19.67 26.73 31.98 6 0.09 M14 eShop eShop eShop 11.5 22.94 29 35 106 106 16 15 24.44 30.5 36.5 6 0.1 M16 eShop eShop eShop 13.4 24.94 33 41 108 108 18 17 26.49 34.55 42.55 6 0.11 345
