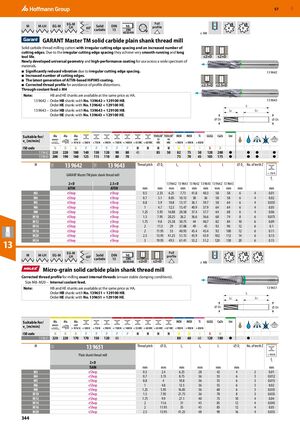

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 344

GBP 57 EG-M Full M M-LH EG-M LH Solid DIN h6 profile 60° carbide 13 DIN 4 6 6535 HA ≥ M4 GARANT Master TM solid carbide plain shank thread mill Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth running and long tool life. ≤2×D ≤2×D Newly developed universal geometry and high-performance coating for use across a wide spectrum of materials. ■ Significantly reduced vibration due to irregular cutting edge spacing. 13 9642 ■ Increased number of cutting edges. ■ The latest generation of AlTiN-based HiPIMS coating. ■ Corrected thread profile for avoidance of profile distortions. ≤2.5×D ≤2.5×D Through-coolant feed ≥ M4 Note: HB and HE shanks are available at the same price as HA. 13 9642 – Order HB shank: with No. 139642 + 129100 HB. 13 9643 Order HE shank: with No. 139642 + 129100 HE. L 13 9643 – Order HB shank: with No. 139643 + 129100 HB. LC LS Order HE shank: with No. 139643 + 129100 HE. ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 13 9642 220 220 180 140 130 120 90 80 45 85 50 82 75 50 120 200 ● ● ● ● 13 9643 200 190 160 125 115 110 80 70 75 70 45 105 175 ● ● ● ● M 13 9642 13 9643 Thread pitch ⌀ DC Lc Ls L ⌀ Ds No. of teeth Z 11D 11D < 750 N GARANT Master TM plain shank thread mill fz 2×D 2.5×D ​ ​ 13 9642 13 9643 13 9642 13 9643 13 9642 13 9643 ​ ​ ​ AlTiN AlTiN mm mm mm mm mm mm mm mm mm ​ mm M3 eShop eShop 0.5 2.33 6.25 7.73 41.8 40.3 58 58 6 4 0.01 M4 eShop eShop 0.7 3.1 8.05 10.13 38 36 58 58 6 4 0.02 M5 eShop eShop 0.8 3.9 10.8 13.17 36.1 39.7 58 64 6 4 0.035 M6 eShop eShop 1 4.7 12.5 15.47 40.9 37.9 64 64 6 4 0.05 M8 eShop eShop 1.25 5.95 16.88 20.58 37.4 37.7 64 68 6 4 0.06 M10 eShop eShop 1.5 7.95 20.25 26.2 36.6 36.6 68 74 8 6 0.075 M12 eShop eShop 1.75 9.8 25.38 30.75 44 40.7 82 84 10 6 0.09 M14 eShop eShop 2 11.5 29 37.08 49 45 92 96 12 6 0.1 M16 eShop eShop 2 11.95 33 40.93 45.4 45.4 92 100 12 6 0.11 M20 eShop eShop 2.5 13.95 41.25 51.15 45.9 45.9 102 112 14 6 0.13 M24 eShop eShop 3 19.95 49.5 61.41 53.2 51.2 120 130 20 6 0.15 13 EG-M Full M M-LH EG-M LH Solid DIN h6 profile 60° carbide 13 DIN 2 3 4 6535 HA ≤2×D ≤2×D ≥ M8 Micro-grain solid carbide plain shank thread mill Corrected thread profile for milling exact internal threads (ensure stable clamping conditions). Size M8–M20 – Internal coolant feed. Note: HB and HE shanks are available at the same price as HA. 13 9651 Order HB shank: with No. 139651 + 129100 HB. L Order HE shank: with No. 139651 + 129100 HE. LC LS ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 13 9651 220 220 170 170 150 120 80 80 60 60 120 180 ● ● M 13 9651 Thread pitch ⌀ DC Lc Ls L ⌀ Ds No. of teeth Z 12J Plain shank thread mill < 900 N fz 2×D TiAlN mm mm mm mm mm mm ​ mm M3 eShop 0.5 2.4 6.25 28 42 4 2 0.01 M4 eShop 0.7 3.15 8.75 36 55 6 3 0.012 M5 eShop 0.8 4 10.8 36 55 6 3 0.015 M6 eShop 1 4.8 12.5 36 55 6 3 0.02 M8 eShop 1.25 5.95 16.85 36 60 6 3 0.035 M10 eShop 1.5 7.95 21.75 36 70 8 3 0.035 M12 eShop 1.75 9.9 27.1 40 75 10 4 0.04 M14 eShop 2 11.6 31 45 85 12 4 0.045 M16 eShop 2 11.95 35 45 85 12 4 0.05 M20 eShop 2.5 13.95 41.25 48 90 16 4 0.055 344
