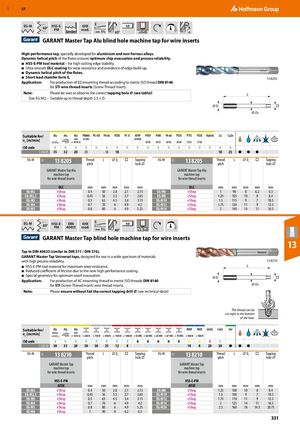

GBP 57 EG-M E 60° HSS-E- 6HX h9 PM Standard mod. 1½ 45° ≤3×D ≠ GARANT Master Tap Alu blind hole machine tap for wire inserts High-performance tap, specially developed for aluminium and non-ferrous alloys. Dynamic helical pitch of the flutes ensures optimum chip evacuation and process reliability. ■ HSS-E-PM tool material – for high cutting edge stability. ■ Ultra-smooth DLC coating for wear resistance and avoidance of edge build-up. ■ Dynamic helical pitch of the flutes. ■ Short lead chamfer form E. 13 8205 Application: For production of EG mounting thread according to metric ISO thread DIN 8140 for STI wire thread inserts (Screw Thread Insert). Note: Please be sure to observe the correct tapping hole ⌀ (see table)! L Size EG-M2 – Suitable up to thread depth 2.5 × D. ØD Ø DS Suitable for/ vc [m/min] ISO code N N N N N N N N N N N N N N N N N N ​ ​ ​ ​ ​ 13 8205 35 32 20 20 18 18 18 25 ● ● ● EG-M 13 8205 Thread L ⌀ Ds □ Tapping EG-M 13 8205 Thread L ⌀ Ds □ Tapping 11I 11I pitch hole ⌀ pitch hole ⌀ GARANT Master Tap Alu GARANT Master Tap Alu machine tap machine tap for wire thread inserts for wire thread inserts DLC mm mm mm mm mm DLC mm mm mm mm mm EG-M2 eShop 0.4 50 2.8 2.1 2.15 EG-M6 eShop 1 90 8 6.2 6.3 EG-M2,5 eShop 0.45 56 3.5 2.7 2.65 EG-M8 eShop 1.25 105 10 8 8.4 EG-M3 eShop 0.5 63 4.5 3.4 3.15 EG-M10 eShop 1.5 115 9 7 10.5 EG-M4 eShop 0.7 70 6 4.9 4.2 EG-M12 eShop 1.75 120 11 9 12.5 EG-M5 eShop 0.8 80 6 4.9 5.25 EG-M16 eShop 2 140 14 11 16.5 EG-M E 60° HSS-E- DIN 6HX h9 PM 40435 mod. 1½ 40° ≤2.5×D GARANT Master Tap blind hole machine tap for wire inserts Tap to DIN 40435 (similar to DIN 371 / DIN 376). 13 GARANT Master Tap Universal taps, designed for use in a wide spectrum of materials with high process reliability. ​ 13 8210 ■ HSS-E-PM tool material for maximum wear resistance. L ■ Reduced coefficient of friction due to the new high-performance coating. ■ Special geometry for optimum swarf evacuation. ØD Application: For production of AC mounting thread to metric ISO threads DIN 8140 for STI (Screw Thread Insert) wire thread inserts. Ø DS Note: Please ensure without fail the correct tapping drill ⌀ (see technical data)! The thread can be cut right to the bottom of the hole. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 13 8210 30 35 20 30 30 25 12 8 10 8 20 20 ● ● ● EG-M 13 8210 Thread L ⌀ Ds □ Tapping EG-M 13 8210 Thread L ⌀ Ds □ Tapping 11I 11I pitch hole ⌀ pitch hole ⌀ GARANT Master Tap GARANT Master Tap machine tap machine tap for wire thread inserts for wire thread inserts HSS-E-PM HSS-E-PM AlTiX mm mm mm mm mm AlTiX mm mm mm mm mm EG-M2 eShop 0.4 50 2.8 2.1 2.15 EG-M8 eShop 1.25 100 10 8 8.4 EG-M2,5 eShop 0.45 56 3.5 2.7 2.65 EG-M10 eShop 1.5 100 9 7 10.5 EG-M3 eShop 0.5 63 4.5 3.4 3.15 EG-M12 eShop 1.75 110 11 9 12.5 EG-M4 eShop 0.7 70 6 4.9 4.2 EG-M16 eShop 2 125 14 11 16.5 EG-M5 eShop 0.8 80 6 4.9 5.25 EG-M20 eShop 2.5 160 18 14.5 20.75 EG-M6 eShop 1 90 8 6.2 6.3 ​ ​ ​ ​ ​ ​ ​ 331
