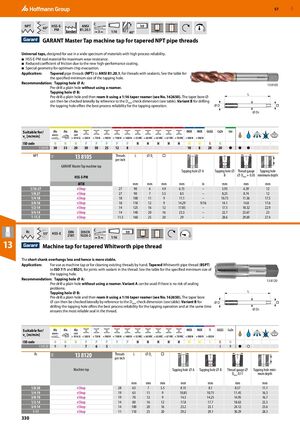

GBP 57 NPT C 60° HSS-E- ANSI h9 PM Standard B1.20.1 3 1:16 40° GARANT Master Tap machine tap for tapered NPT pipe threads Universal taps, designed for use in a wide spectrum of materials with high process reliability. ■ HSS-E-PM tool material for maximum wear resistance. ■ Reduced coefficient of friction due to the new high-performance coating. ■ Special geometry for optimum chip evacuation. Application: Tapered pipe threads (NPT) to ANSI B1.20.1, for threads with sealants. See the table for the specified minimum size of the tapping hole. Recommendation: Tapping hole ⌀ A: 13 8105 Pre-drill a plain hole without using a reamer. Tapping hole ⌀ B: L Pre-drill a plain hole and then ream it using a 1:16 taper reamer (see No. 162650). The taper bore ⌀ can then be checked laterally by reference to the Dmax check dimension (see table). Variant B for drilling the tapping hole offers the best process reliability for the tapping operation. ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 13 8105 30 35 20 30 30 25 12 8 10 8 20 20 ● ● ● NPT 13 8105 Threads L ⌀ Ds □ 11I per inch GARANT Master Tap machine tap Tapping hole ⌀ A Tapping hole ⌀ Thread gauge Tapping hole HSS-E-PM B ⌀ Dmax + 0.05 minimum depth AlTiX ​ mm mm mm mm in mm mm mm 1/16-27 eShop 27 90 6 4.9 6.15 – 5.95 6.39 12 1/8-27 eShop 27 90 7 5.5 8.5 – 8.25 8.74 12 1/4-18 eShop 18 100 11 9 11.1 – 10.75 11.36 17.5 3/8-18 eShop 18 110 12 9 14.29 9/16 14.1 14.8 17.6 1/2-14 eShop 14 125 16 12 17.85 – 17.5 18.32 22.9 3/4-14 eShop 14 140 20 16 23.3 – 22.7 23.67 23 1-11,5 eShop 11.5 160 25 20 29 – 28.6 29.69 27.4 Rc C 55° HSS-E DIN DIN EN h9 2181 10226-2 3 1:16 13 Machine tap for tapered Whitworth pipe thread The short shank overhangs less and hence is more stable. Application: For use as machine tap or for cleaning existing threads by hand. Tapered Whitworth pipe thread (BSPT) to ISO 7/1 and BS21, for joints with sealant in the thread. See the table for the specified minimum size of the tapping hole. Recommendation: Tapping hole ⌀ A: 13 8120 Pre-drill a plain hole without using a reamer. Variant A can be used if there is no risk of sealing problems. Tapping hole ⌀ B: L Pre-drill a plain hole and then ream it using a 1:16 taper reamer (see No. 162650). The taper bore ⌀ can then be checked laterally by reference to the Dmax check dimension (see table). Variant B for ØD drilling the tapping hole offers the best process reliability for the tapping operation and at the same time Ø DS ensures the most reliable seal in the thread. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K N ​ ​ ​ ​ ​ 13 8120 9 9 7 6 5 5 9 ● ○ Rc 13 8120 Threads L ⌀ Ds □ 11H per inch Machine tap Tapping hole ⌀ A Tapping hole ⌀ B Thread gauge ⌀ Tapping hole mini- Dmax JS11 mum depth ​ mm mm mm mm mm mm mm 1/8-28 eShop 28 63 7 5.5 8.15 8.1 8.57 11.1 1/4-19 eShop 19 63 11 9 10.85 10.75 11.45 16.3 3/8-19 eShop 19 70 12 9 14.3 14.25 14.95 16.7 1/2-14 eShop 14 80 16 12 17.8 17.7 18.63 22.3 3/4-14 eShop 14 100 20 16 23.2 23.1 24.12 23.6 1-11 eShop 11 110 25 20 29.2 29.1 30.29 28.3 330
