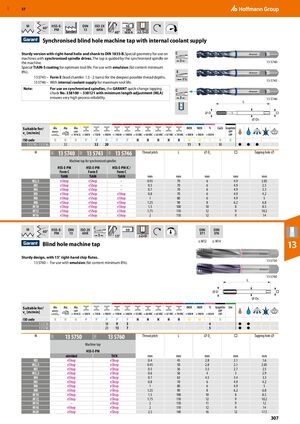

GBP 57 M 60° HSS-E- PM DIN 13 ISO 2X 6HX h6 DIN Standard 40° 1835 B ≤2.5×D Synchronised blind hole machine tap with internal coolant supply Sturdy version with right-hand helix and shank to DIN 1835-B.Special geometry for use on C machines with synchronised spindle drives. The tap is guided by the synchronised spindle on 3 13 5740 the machine. Special TiAlN-S coating for optimum tool life. For use with emulsion (fat content minimum 8%). E 13 5743 – Form E (lead chamfer: 1.5 - 2 turns) for the deepest possible thread depths. 1½ 13 5743 13 5746 – With internal coolant supply for maximum tool life. Note: For use on synchronised spindles, the GARANT quick-change tapping C chuck No. 338100 − 338121 with minimum length adjustment (MLA) ensures very high process reliability. 3 13 5746 L ⌀D □ ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N N ​ ​ ​ ​ ​ 13 5740–​13 5746 32 32 20 11 9 30 ● ● ● M 13 5740 13 5743 13 5746 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H 11H 11H Machine tap for synchronised spindles HSS-E-PM HSS-E-PM HSS-E-PM IC / Form C Form E Form C TiAlN TiAlN TiAlN mm mm mm mm mm M2,5 eShop eShop – 0.45 70 6 4.9 2.05 M3 eShop eShop – 0.5 70 6 4.9 2.5 M4 eShop eShop – 0.7 70 6 4.9 3.3 M5 eShop eShop eShop 0.8 70 6 4.9 4.2 M6 eShop eShop eShop 1 80 6 4.9 5 M8 eShop eShop eShop 1.25 90 8 6.2 6.8 M10 eShop eShop eShop 1.5 100 10 8 8.5 M12 eShop eShop eShop 1.75 110 12 9 10.2 M16 eShop eShop eShop 2 110 12 9 14 M C 60° HSS-E- DIN ISO 2X h9 DIN DIN PM 13 6HX 371 376 3 15° ≤2×D ≤ M12 ≥ M14 Blind hole machine tap 13 Sturdy design, with 15° right-hand chip flutes. 13 5750 13 5760 – For use with emulsion (fat content minimum 8%). 13 5760 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 5750 18 9 3 4 ● ● 13 5760 23 13 7 5 ● ● M 13 5750 13 5760 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H 11H Machine tap HSS-E-PM nitrided TiCN mm mm mm mm mm M2 eShop eShop 0.4 45 2.8 2.1 1.6 M2,5 eShop eShop 0.45 50 2.8 2.1 2.05 M3 eShop eShop 0.5 56 3.5 2.7 2.5 M3,5 eShop eShop 0.6 56 4 3 2.9 M4 eShop eShop 0.7 63 4.5 3.4 3.3 M5 eShop eShop 0.8 70 6 4.9 4.2 M6 eShop eShop 1 80 6 4.9 5 M8 eShop eShop 1.25 90 8 6.2 6.8 M10 eShop eShop 1.5 100 10 8 8.5 M12 eShop eShop 1.75 110 12 9 10.2 M14 – eShop 2 110 11 9 12 M16 eShop eShop 2 110 12 9 14 M20 eShop eShop 2.5 140 16 12 17.5 307
