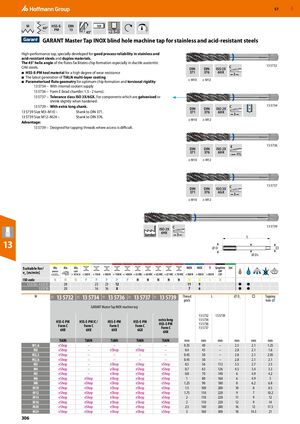

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 306

GBP 57 M h9 60° HSS-E- PM DIN 13 45° ≤2.5×D GARANT Master Tap INOX blind hole machine tap for stainless and acid-resistant steels High-performance tap, specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. The 45° helix angle of the flutes facilitates chip formation especially in ductile austenitic C 13 5732 CrNi steels. DIN DIN ISO 2X ■ HSS-E-PM tool material for a high degree of wear resistance 371 376 6HX 3 ■ The latest generation of TiALN multi-layer coating ≤ M10 ≥ M12 ■ Parameterised flute geometry for optimum chip formation and torsional rigidity 13 5734 – With internal coolant supply 13 5736 – Form E (lead chamfer: 1.5 - 2 turns). 13 5737 – Tolerance class ISO 3X/6GX. For components which are galvanised or shrink slightly when hardened. 13 5739 – With extra long shank. C 13 5734 DIN DIN ISO 2X 13 5739 Size M3–M10 – Shank to DIN 371. 371 376 6HX 3 13 5739 Size M12–M24 – Shank to DIN 376. ≤ M10 ≥ M12 Advantage: 13 5739 – Designed for tapping threads where access is difficult. E 13 5736 DIN DIN ISO 2X 371 376 6HX 1½ ≤ M10 ≥ M12 C 13 5737 DIN DIN ISO 3X 371 376 6GX 3 ≤ M10 ≥ M12 C 13 5739 ISO 2X 6HX Standard 3 L 13 ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 5732–​13 5737 28 23 23 12 11 9 ● ● 13 5739 20 16 16 8 7 6 ● ● M 13 5732 13 5734 13 5736 13 5737 13 5739 Thread L ⌀ Ds □ Tapping 11I 11I 11I 11I 11I pitch​ hole ⌀ GARANT Master Tap INOX machine tap 13 5732 13 5739 ​ ​ ​ extra long 13 5734 HSS-E-PM HSS-E-PM IC / HSS-E-PM HSS-E-PM HSS-E-PM 13 5736 Form C Form C Form E Form C Form C 13 5737 6HX 6HX 6HX 6GX 6HX TiAlN TiAlN TiAlN TiAlN TiAlN mm mm mm mm mm mm M1,6 eShop – – – – 0.35 40 – 2.5 2.1 1.25 M2 eShop – eShop eShop – 0.4 45 – 2.8 2.1 1.6 M2,5 eShop – – – – 0.45 50 – 2.8 2.1 2.05 M2,6 eShop – – – – 0.45 50 – 2.8 2.1 2.1 M3 eShop – eShop eShop eShop 0.5 56 112 3.5 2.7 2.5 M4 eShop – eShop eShop eShop 0.7 63 126 4.5 3.4 3.3 M5 eShop – eShop eShop eShop 0.8 70 140 6 4.9 4.2 M6 eShop eShop eShop eShop eShop 1 80 160 6 4.9 5 M8 eShop eShop eShop eShop eShop 1.25 90 180 8 6.2 6.8 M10 eShop eShop eShop eShop eShop 1.5 100 200 10 8 8.5 M12 eShop eShop eShop eShop eShop 1.75 110 220 9 7 10.2 M14 eShop eShop eShop eShop eShop 2 110 220 11 9 12 M16 eShop eShop eShop eShop eShop 2 110 220 12 9 14 M20 eShop eShop eShop eShop eShop 2.5 140 280 16 12 17.5 M24 eShop eShop eShop eShop eShop 3 160 300 18 14.5 21 306
