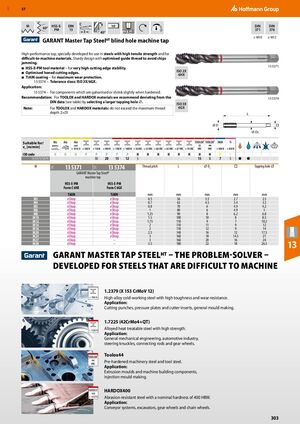

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 303

GBP 57 M C 60° HSS-E- DIN h9 DIN DIN PM 13 371 376 3 40° ≤2.5×D ≤ M10 ≥ M12 GARANT Master Tap SteelHT blind hole machine tap High-performance tap, specially developed for use in steels with high tensile strength and for difficult-to-machine materials. Sturdy design with optimised guide thread to avoid chips jamming. ​ 13 5371 ■ HSS-E-PM tool material – for very high cutting edge stability. ■ Optimised honed cutting edges. ISO 2X 6HX ■ TiAlN coating – for maximum wear protection. 13 5374 – Tolerance class: ISO 3X/6GX. Application: 13 5374 – For components which are galvanised or shrink slightly when hardened. Recommendation: For TOOLOX and HARDOX materials we recommend deviating from the ​ 13 5374 DIN data (see table) by selecting a larger tapping hole ⌀. ISO 3X Note: For TOOLOX and HARDOX materials: do not exceed the maximum thread 6GX depth 2×D! L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H H H H M S ​ ​ ​ ​ ​ 13 5371/​5374 30 20 15 12 5 15 5 7 5 ● ● M 13 5371 13 5374 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11I 11I GARANT Master Tap SteelHT machine tap HSS-E-PM HSS-E-PM Form C 6HX Form C 6GX TiAlN TiAlN mm mm mm mm mm M3 eShop eShop 0.5 56 3.5 2.7 2.5 M4 eShop eShop 0.7 63 4.5 3.4 3.3 M5 eShop eShop 0.8 70 6 4.9 4.2 M6 eShop eShop 1 80 6 4.9 5 M8 eShop eShop 1.25 90 8 6.2 6.8 M10 eShop eShop 1.5 100 10 8 8.5 M12 eShop eShop 1.75 110 9 7 10.2 M14 eShop eShop 2 110 11 9 12 M16 eShop eShop 2 110 12 9 14 M20 eShop eShop 2.5 140 16 12 17.5 M24 eShop eShop 3 160 18 14.5 21 M27 eShop – 3 160 20 16 24 M30 eShop – 3.5 180 22 18 26.5 13 GARANT MASTER TAP STEEL – THE PROBLEM-SOLVER – HT DEVELOPED FOR STEELS THAT ARE DIFFICULT TO MACHINE 1.2379 (X 153 CrMoV 12) < 900 N High-alloy cold-working steel with high toughness and wear resistance. Application: Cutting punches, pressure plates and cutter inserts, general mould making. 1.7225 (42CrMo4+QT) < 1100 N Alloyed heat treatable steel with high strength. Application: General mechanical engineering, automotive industry, steering knuckles, connecting rods and gear wheels. Toolox44 Pre-hardened machinery steel and tool steel. Application: Extrusion moulds and machine building components, injection mould making. HARDOX® 400 HARDOX400 < 1450 N Abrasion-resistant steel with a nominal hardness of 400 HBW. Application: Conveyor systems, excavators, gear wheels and chain wheels. 303
