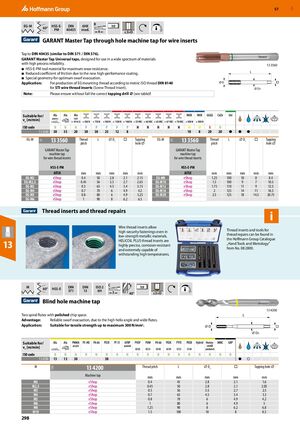

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 298

GBP 57 EG-M B 60° HSS-E- DIN 6HX h9 PM 40435 mod. 4 ≤3×D GARANT Master Tap through hole machine tap for wire inserts Tap to DIN 40435 (similar to DIN 371 / DIN 376). GARANT Master Tap Universal taps, designed for use in a wide spectrum of materials with high process reliability. 13 3560 ■ HSS-E-PM tool material for maximum wear resistance. ■ Reduced coefficient of friction due to the new high-performance coating. L ■ Special geometry for optimum swarf evacuation. Application: For production of EG mounting thread according to metric ISO thread DIN 8140 ØD for STI wire thread inserts (Screw Thread Insert). Ø DS Note: Please ensure without fail the correct tapping drill ⌀ (see table)! Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 13 3560 30 35 20 30 30 25 12 8 10 8 20 20 ● ● ● EG-M 13 3560 Thread L ⌀ Ds □ Tapping EG-M 13 3560 Thread L ⌀ Ds □ Tapping 11I 11I pitch hole ⌀ pitch hole ⌀ GARANT Master Tap GARANT Master Tap machine tap machine tap for wire thread inserts for wire thread inserts HSS-E-PM HSS-E-PM AlTiX mm mm mm mm mm AlTiX mm mm mm mm mm EG-M2 eShop 0.4 50 2.8 2.1 2.15 EG-M8 eShop 1.25 100 10 8 8.4 EG-M2,5 eShop 0.45 56 3.5 2.7 2.65 EG-M10 eShop 1.5 100 9 7 10.5 EG-M3 eShop 0.5 63 4.5 3.4 3.15 EG-M12 eShop 1.75 110 11 9 12.5 EG-M4 eShop 0.7 70 6 4.9 4.2 EG-M16 eShop 2 125 14 11 16.5 EG-M5 eShop 0.8 80 6 4.9 5.25 EG-M20 eShop 2.5 125 18 14.5 20.75 EG-M6 eShop 1 90 8 6.2 6.3 ​ ​ ​ ​ ​ ​ ​ Thread inserts and thread repairs Wire thread inserts allow high-security fastenings even in Thread inserts and tools for low-strength metallic materials. thread repairs can be found in HELICOIL PLUS thread inserts are the Hoffmann Group Catalogue 13 highly precise, corrosion-resistant and extremely capable of „Hand Tools and Metrology“ from No. 08 2800. withstanding high temperatures. M C 60° HSS-E DIN DIN ISO 2 h9 371 13 6H 3 40° ≤3×D Blind hole machine tap 13 4200 Two spiral flutes with polished chip space. L Advantage: Reliable swarf evacuation, due to the high helix angle and wide flutes. Application: Suitable for tensile strength up to maximum 300 N/mm2. ⌀D □ ⌀ DS Suitable for/ vc [m/min] ISO code N N N N N N N N N N N N N N N N N N ​ ​ ​ ​ ​ 13 4200 13 13 30 30 ● ○ M 13 4200 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Machine tap mm mm mm mm mm M2 eShop 0.4 45 2.8 2.1 1.6 M2,5 eShop 0.45 50 2.8 2.1 2.05 M3 eShop 0.5 56 3.5 2.7 2.5 M4 eShop 0.7 63 4.5 3.4 3.3 M5 eShop 0.8 70 6 4.9 4.2 M6 eShop 1 80 6 4.9 5 M8 eShop 1.25 90 8 6.2 6.8 M10 eShop 1.5 100 10 8 8.5 298
