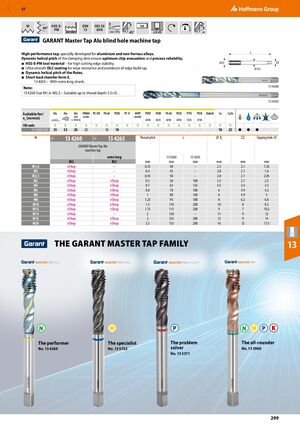

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 299

GBP 57 M E 60° HSS-E- DIN ISO 2X h9 PM Standard 13 6HX 1½ 45° ≤3×D ≠ GARANT Master Tap Alu blind hole machine tap L High-performance tap, specially developed for aluminium and non-ferrous alloys. Dynamic helical pitch of the clamping slots ensure optimum chip evacuation and process reliability. ■ HSS-E-PM tool material – for high cutting edge stability. ØD ■ Ultra-smooth DLC coating for wear resistance and avoidance of edge build-up. Ø DS ■ Dynamic helical pitch of the flutes. ■ Short lead chamfer form E. 13 4265 – With extra long shank. Note: 13 4260 13 4260 Size M1,6–M2,5 – Suitable up to thread depth 2.5×D. 13 4265 Suitable for/ vc [m/min] ISO code N N N N N N N N N N N N N N N N N N ​ ​ ​ ​ ​ 13 4260/​4265 35 32 20 20 18 18 18 25 ● ● ● M 13 4260 13 4265 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11I 11I GARANT Master Tap Alu machine tap extra long ​ 13 4260 13 4265 ​ ​ ​ DLC DLC mm mm mm mm mm mm M1,6 eShop – 0.35 40 – 2.5 2.1 1.25 M2 eShop – 0.4 45 – 2.8 2.1 1.6 M2,5 eShop – 0.45 50 – 2.8 2.1 2.05 M3 eShop eShop 0.5 56 100 3.5 2.7 2.5 M4 eShop eShop 0.7 63 125 4.5 3.4 3.3 M5 eShop eShop 0.8 70 160 6 4.9 4.2 M6 eShop eShop 1 80 160 6 4.9 5 M8 eShop eShop 1.25 95 180 8 6.2 6.8 M10 eShop eShop 1.5 110 200 10 8 8.5 M12 eShop eShop 1.75 115 200 9 7 10.2 M14 eShop – 2 120 – 11 9 12 M16 eShop eShop 2 125 200 12 9 14 M20 eShop eShop 2.5 155 200 16 12 17.5 THE GARANT MASTER TAP FAMILY 13 The performer The specialist The problem The all-rounder No. 13 4260 No. 13 5732 solver No. 13 5960 No. 13 5371 299
