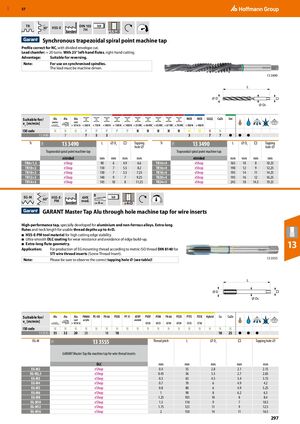

GBP 57 TR HSS-E DIN 103 h9 30° 7H Standard ≤1.5×D Synchronous trapezoidal spiral point machine tap Profile correct for NC, with divided envelope cut. Lead chamfer: ≈ 20 turns. With 25° left-hand flutes, right-hand cutting. Advantage: Suitable for reversing. Note: For use on synchronised spindles. The lead must be machine driven. 13 3490 L ⌀D □ ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 13 3490 7 7 5 3 3 7 7 ● ● ● Tr 13 3490 L ⌀ Ds □ Tapping Tr 13 3490 L ⌀ Ds □ Tapping 11H 11H hole ⌀ hole ⌀ Trapezoidal spiral point machine tap Trapezoidal spiral point machine tap nitrided mm mm mm mm nitrided mm mm mm mm TR8×1,5 eShop 90 6 4.9 6.6 TR14×4 eShop 165 10 8 10.25 TR10×2 eShop 110 7 5.5 8.2 TR16×4 eShop 190 12 9 12.25 TR10×3 eShop 130 7 5.5 7.25 TR18×4 eShop 195 14 11 14.25 TR12×3 eShop 140 9 7 9.25 TR20×4 eShop 195 16 12 16.25 TR14×3 eShop 145 10 8 11.25 TR24×5 eShop 245 18 14.5 19.25 EG-M B 60° HSS-E- 6HX h9 PM Standard mod. 4 ≤4×D GARANT Master Tap Alu through hole machine tap for wire inserts High-performance tap, specially developed for aluminium and non-ferrous alloys. Extra-long flutes and neck length for usable thread depths up to 4×D. ■ HSS-E-PM tool material for high cutting edge stability. ■ Ultra-smooth DLC coating for wear resistance and avoidance of edge build-up. ■ Extra-long flute geometry. Application: For production of EG mounting thread according to metric ISO thread DIN 8140 for 13 STI wire thread inserts (Screw Thread Insert). Note: Please be sure to observe the correct tapping hole ⌀ (see table)! 13 3555 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N N N N N N N N N N N N N N N N ​ ​ ​ ​ ​ 13 3555 35 32 20 20 18 18 18 25 ● ● ● EG-M 13 3555 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11I GARANT Master Tap Alu machine tap for wire thread inserts DLC mm mm mm mm mm EG-M2 eShop 0.4 55 2.8 2.1 2.15 EG-M2,5 eShop 0.45 56 3.5 2.7 2.65 EG-M3 eShop 0.5 63 4.5 3.4 3.15 EG-M4 eShop 0.7 70 6 4.9 4.2 EG-M5 eShop 0.8 80 6 4.9 5.25 EG-M6 eShop 1 90 8 6.2 6.3 EG-M8 eShop 1.25 105 10 8 8.4 EG-M10 eShop 1.5 110 9 7 10.5 EG-M12 eShop 1.75 125 11 9 12.5 EG-M16 eShop 2 150 14 11 16.5 297
