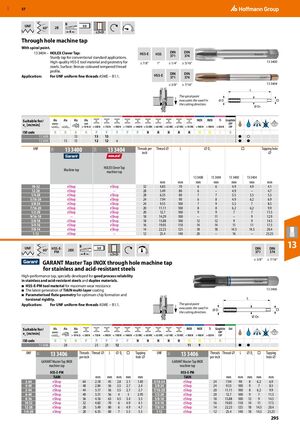

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 295

GBP 57 UNF B 60° 2B h9 4 ≤3×D ​Through hole machine tap With spiral point. 13 3404 – HOLEX Clever Tap: HSS-E HSS DIN DIN Sturdy tap for conventional standard applications. 371 374 High-quality HSS-E tool material and geometry for ≤ 7/8“ 1“ ≤ 1/4“ ≥ 5/16“ 13 3400 steels. Surface: Bronze-coloured tempered thread profile. HSS-E DIN DIN Application: For UNF uniform fine threads ASME − B1.1. 371 374 ≤ 3/8“ ≥ 7/16“ 13 3404 L ​­The spiral point evacuates the swarf in ØD the cutting direction. Ø DS Suitable for/ vc [m/min] ISO code N N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ 13 3400 13 15 15 ● ○ 13 3404 13 13 12 12 6 ● ● UNF 13 3400 13 3404 Threads per Thread ⌀ L ⌀ Ds □ Tapping hole 12H 11H inch ⌀ HOLEX Clever Tap Machine tap machine tap ​ ​ ​ 13 3400 13 3404 13 3400 13 3404 ​ ​ mm mm mm mm mm mm mm 10-32 eShop eShop 32 4.83 70 6 6 4.9 4.9 4.1 12-28 eShop – 28 5.49 80 6 – 4.9 – 4.7 1/4-28 eShop eShop 28 6.35 80 7 7 5.5 5.5 5.5 5/16-24 eShop eShop 24 7.94 90 6 8 4.9 6.2 6.9 3/8-24 eShop eShop 24 9.53 100 7 9 5.5 7 8.5 7/16-20 eShop eShop 20 11.11 100 8 8 6.2 6.2 9.9 1/2-20 eShop eShop 20 12.7 100 9 9 7 7 11.5 9/16-18 – eShop 18 14.29 100 – 11 – 9 12.9 5/8-18 eShop eShop 18 15.88 100 12 12 9 9 14.5 3/4-16 eShop eShop 16 19.05 110 14 14 11 11 17.5 7/8-14 eShop eShop 14 22.23 125 18 18 14.5 14.5 20.4 1-12 eShop – 12 25.4 140 20 – 16 – 23.25 UNF 60° HSS-E- 2BX B h9 DIN DIN 13 PM 371 374 4 ≤3×D ≤ 3/8“ ≥ 7/16“ GARANT Master Tap INOX through hole machine tap for stainless and acid-resistant steels High-performance tap, specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. ■ HSS-E-PM tool material for maximum wear resistance ■ The latest generation of TiAlN multi-layer coating 13 3406 ■ Parameterised flute geometry for optimum chip formation and torsional rigidity. L Application: For UNF uniform fine threads ASME − B1.1. ​­The spiral point evacuates the swarf in ØD the cutting direction. Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 3406 28 23 23 12 11 9 ● ● UNF 13 3406 Threads Thread ⌀ L ⌀ Ds □ Tapping UNF 13 3406 Threads Thread ⌀ L ⌀ Ds □ Tapping 11I 11I per inch hole ⌀ per inch hole ⌀ GARANT Master Tap INOX GARANT Master Tap INOX machine tap machine tap HSS-E-PM HSS-E-PM TiAlN ​ mm mm mm mm mm TiAlN ​ mm mm mm mm mm 2-64 eShop 64 2.18 45 2.8 2.1 1.85 5/16-24 eShop 24 7.94 90 8 6.2 6.9 4-48 eShop 48 2.84 56 3.5 2.7 2.4 3/8-24 eShop 24 9.53 100 9 7 8.5 5-44 eShop 44 3.17 56 3.5 2.7 2.7 7/16-20 eShop 20 11.11 100 8 6.2 9.9 6-40 eShop 40 3.51 56 4 3 2.95 1/2-20 eShop 20 12.7 100 9 7 11.5 8-36 eShop 36 4.16 63 4.5 3.4 3.5 5/8-18 eShop 18 15.88 100 12 9 14.5 10-32 eShop 32 4.83 70 6 4.9 4.1 3/4-16 eShop 16 19.05 110 14 11 17.5 12-28 eShop 28 5.49 80 6 4.9 4.7 7/8-14 eShop 14 22.23 125 18 14.5 20.4 1/4-28 eShop 28 6.35 80 7 5.5 5.5 1-12 eShop 12 25.4 140 18 14.5 23.25 295
