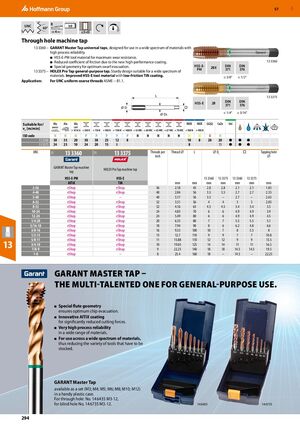

GBP 57 UNC B 60° h9 4 ≤3×D ​Through hole machine tap 13 3360 – GARANT Master Tap universal taps, designed for use in a wide spectrum of materials with high process reliability. ■ HSS-E-PM tool material for maximum wear resistance. ■ Reduced coefficient of friction due to the new high-performance coating. 13 3360 ■ Special geometry for optimum swarf evacuation. HSS-E- 2BX DIN DIN 13 3375 – HOLEX Pro Tap general-purpose tap. Sturdy design suitable for a wide spectrum of PM 371 376 materials. Improved HSS-E tool material with low-friction TiN coating. ≤ 3/8″ ≥ 1/2″ Application: For UNC uniform coarse threads ASME − B1.1. L 13 3375 HSS-E 2B DIN DIN 371 376 ØD Ø DS ≤ 1/4″ ≥ 5/16″ Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 13 3360 30 35 20 30 30 25 12 8 10 8 20 20 ● ● ● 13 3375 24 25 10 24 20 15 8 8 15 ● ● ● UNC 13 3360 13 3375 Threads per Thread ⌀ L ⌀ Ds □ Tapping hole 12I 11I inch ⌀ GARANT Master Tap machine HOLEX Pro Tap machine tap tap HSS-E-PM HSS-E ​ ​ ​ 13 3360 13 3375 13 3360 13 3375 ​ AlTiX TiN ​ mm mm mm mm mm mm mm 2-56 eShop eShop 56 2.18 45 2.8 2.8 2.1 2.1 1.85 4-40 eShop eShop 40 2.84 56 3.5 3.5 2.7 2.7 2.35 5-40 eShop – 40 3.17 56 3.5 – 2.7 – 2.65 6-32 eShop eShop 32 3.51 56 4 4 3 3 2.85 8-32 eShop eShop 32 4.16 63 4.5 4.5 3.4 3.4 3.5 10-24 eShop eShop 24 4.83 70 6 6 4.9 4.9 3.9 12-24 eShop eShop 24 5.49 80 6 6 4.9 4.9 4.5 1/4-20 eShop eShop 20 6.35 80 7 7 5.5 5.5 5.1 5/16-18 eShop eShop 18 7.94 90 8 6 6.2 4.8 6.6 3/8-16 eShop eShop 16 9.53 100 10 7 8 5.5 8 1/2-13 eShop eShop 13 12.7 110 9 9 7 7 10.8 5/8-11 eShop eShop 11 15.88 110 12 12 9 9 13.5 13 3/4-10 7/8-9 eShop eShop eShop eShop 10 9 19.05 22.23 125 140 14 18 14 18 11 14.5 11 14.5 16.5 19.5 1-8 eShop – 8 25.4 160 18 – 14.5 – 22.25 GARANT MASTER TAP – THE MULTI-TALENTED ONE FOR GENERAL-PURPOSE USE. ■ Special flute geometry ensures optimum chip evacuation. ■ Innovative AlTiX coating for significantly reduced cutting forces. ■ Very high process reliability in a wide range of materials. ■ For use across a wide spectrum of materials, thus reducing the variety of tools that have to be stocked. GARANT Master Tap available as a set (M3; M4; M5; M6; M8; M10; M12) in a handy plastic case. For through hole: No. 14 6435 M3-12, for blind hole No. 14 6735 M3-12. 14 6435 14 6735 294
