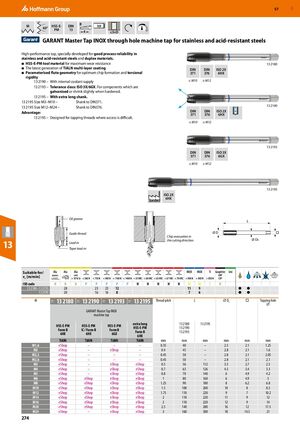

GBP 57 M B 60° HSS-E- DIN h9 PM 13 4 ≤3×D GARANT Master Tap INOX through hole machine tap for stainless and acid-resistant steels High-performance tap, specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. ■ HSS-E-PM tool material for maximum wear resistance ​ 13 2180 ■ The latest generation of TiALN multi-layer coating DIN DIN ISO 2X ■ Parameterised flute geometry for optimum chip formation and torsional 371 376 6HX rigidity 13 2190 – With internal coolant supply ≤ M10 ≥ M12 13 2193 – Tolerance class: ISO 3X/6GX. For components which are galvanised or shrink slightly when hardened. 13 2195 – With extra long shank. 13 2195 Size M3–M10 – Shank to DIN371. ​ 13 2190 13 2195 Size M12–M24 – Shank to DIN376. Advantage: DIN DIN ISO 2X 371 376 6HX 13 2195 – Designed for tapping threads where access is difficult. ≤ M10 ≥ M12 ​ 13 2193 DIN DIN ISO 3X 371 376 6GX ≤ M10 ≥ M12 ​ 13 2195 ISO 2X Standard 6HX Oil groove L Guide thread ØD ​­Chip evacuation in the cutting direction. Ø DS 13 Lead-in Taper lead-in Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 2180–​13 2193 28 23 23 12 11 9 ● ● 13 2195 20 16 16 8 7 6 ● ● M 13 2180 13 2190 13 2193 13 2195 Thread pitch L ⌀ Ds □ Tapping hole 11I 11I 11I 11I ⌀ GARANT Master Tap INOX machine tap extra long ​ 13 2180 13 2195 ​ ​ ​ HSS-E-PM HSS-E-PM HSS-E-PM HSS-E-PM 13 2190 Form B IC / Form B Form B Form B 13 2193 6HX 6HX 6GX 6HX TiAlN TiAlN TiAlN TiAlN mm mm mm mm mm mm M1,6 eShop – – – 0.35 40 – 2.5 2.1 1.25 M2 eShop – eShop – 0.4 45 – 2.8 2.1 1.6 M2,5 eShop – – – 0.45 50 – 2.8 2.1 2.05 M2,6 eShop – – – 0.45 50 – 2.8 2.1 2.1 M3 eShop – eShop eShop 0.5 56 112 3.5 2.7 2.5 M4 eShop – eShop eShop 0.7 63 126 4.5 3.4 3.3 M5 eShop – eShop eShop 0.8 70 140 6 4.9 4.2 M6 eShop eShop eShop eShop 1 80 160 6 4.9 5 M8 eShop eShop eShop eShop 1.25 90 180 8 6.2 6.8 M10 eShop eShop eShop eShop 1.5 100 200 10 8 8.5 M12 eShop eShop eShop eShop 1.75 110 220 9 7 10.2 M14 eShop eShop eShop eShop 2 110 220 11 9 12 M16 eShop eShop eShop eShop 2 110 220 12 9 14 M20 eShop eShop eShop eShop 2.5 140 280 16 12 17.5 M24 eShop – eShop eShop 3 160 300 18 14.5 21 274
