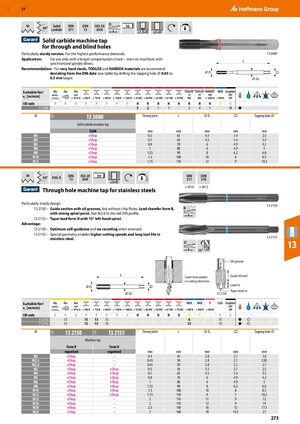

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 273

GBP 57 M D Solid 60° carbide DIN DIN ISO 2X h6 371 13 6HX 4 ≤1.5×D ≤2×D Solid carbide machine tap for through and blind holes Particularly sturdy version. For the highest performance demands. 13 2080 Application: For use only with a length compensation chuck − even on machines with L synchronised spindle drives. Recommendation: For very hard steels, TOOLOX and HARDOX materials we recommend deviating from the DIN data (see table) by drilling the tapping hole ⌀ 0.05 to ⌀D □ 0.3 mm larger. ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H H H H M N ​ ​ ​ ​ ​ 13 2080 3 2 1 1 5 4 3 18 ● M 13 2080 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Solid carbide machine tap TiAlN mm mm mm mm mm M3 eShop 0.5 63 4.5 3.4 2.5 M4 eShop 0.7 63 4.5 3.4 3.3 M5 eShop 0.8 70 6 4.9 4.2 M6 eShop 1 80 6 4.9 5 M8 eShop 1.25 90 8 6.2 6.8 M10 eShop 1.5 100 10 8 8.5 M12 eShop 1.75 110 12 9 10.2 M HSS-E DIN ISO 2X h9 DIN DIN 60° 13 6HX 371 376 ≤3×D ≤ M10 ≥ M12 Through hole machine tap for stainless steels Particularly sturdy design. 13 2150 13 2150 – Guide section with oil grooves, but without chip flutes. Lead chamfer form B, B with strong spiral point. Size M2.6 to the old DIN profile. 4 13 2155 – Taper lead form D with 15° left-hand spiral. Advantage: 13 2150 – Optimum self-guidance and no recutting when reversed. 13 2155 – Special geometry enables higher cutting speeds and long tool life in 13 2155 stainless steel. D 4 15° 13 Oil groove L Guide thread Swarf evacuation in cutting direction. Lead-in ØD Taper lead-in Ø DS 13 2150 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N N ​ ​ ​ ​ ​ 13 2150 13 15 15 15 6 13 ● ○ 13 2155 13 15 15 15 13 13 ● ○ M 13 2150 13 2155 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H 11H Machine tap Form B Form D vaporised vaporised mm mm mm mm mm M2 eShop – 0.4 45 2.8 2.1 1.6 M2,5 eShop – 0.45 50 2.8 2.1 2.05 M2,6 eShop – 0.45 50 2.8 2.1 2.1 M3 eShop eShop 0.5 56 3.5 2.7 2.5 M4 eShop eShop 0.7 63 4.5 3.4 3.3 M5 eShop eShop 0.8 70 6 4.9 4.2 M6 eShop eShop 1 80 6 4.9 5 M8 eShop eShop 1.25 90 8 6.2 6.8 M10 eShop eShop 1.5 100 10 8 8.5 M12 eShop eShop 1.75 110 9 7 10.2 M14 eShop – 2 110 11 9 12 M16 eShop – 2 110 12 9 14 M20 eShop – 2.5 140 16 12 17.5 M24 eShop – 3 160 18 14.5 21 273
