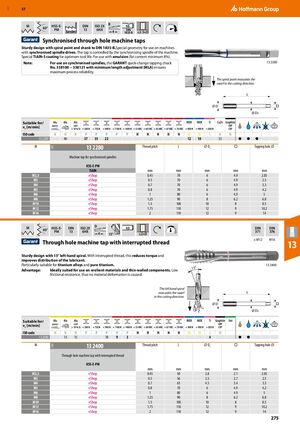

GBP 57 M B 60° HSS-E- PM DIN 13 ISO 2X 6HX h6 DIN Standard 4 1835 B ≤2.5×D Synchronised through hole machine taps Sturdy design with spiral point and shank to DIN 1835-B.Special geometry for use on machines with synchronised spindle drives. The tap is controlled by the synchronising spindle of the machine. Special TiAlN-S coating for optimum tool life. For use with emulsion (fat content minimum 8%). Note: For use on synchronised spindles, the GARANT quick-change tapping chuck 13 2280 No. 338100 − 338121 with minimum length adjustment (MLA) ensures maximum process reliability. The spiral point evacuates the swarf in the cutting direction. L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N N ​ ​ ​ ​ ​ 13 2280 40 37 35 22 12 10 35 ● ● ● M 13 2280 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Machine tap for synchronised spindles HSS-E-PM TiAlN mm mm mm mm mm M2,5 eShop 0.45 70 6 4.9 2.05 M3 eShop 0.5 70 6 4.9 2.5 M4 eShop 0.7 70 6 4.9 3.3 M5 eShop 0.8 70 6 4.9 4.2 M6 eShop 1 80 6 4.9 5 M8 eShop 1.25 90 8 6.2 6.8 M10 eShop 1.5 100 10 8 8.5 M12 eShop 1.75 110 12 9 10.2 M16 eShop 2 110 12 9 14 M D 60° HSS-E- DIN ISO 2X h9 DIN DIN PM 13 6HX 371 376 4 15° ≤2×D ≤ M12 M16 Through hole machine tap with interrupted thread 13 Sturdy design with 15° left-hand spiral. With interrupted thread, this reduces torque and improves distribution of the lubricant. Particularly suitable for titanium alloys and pure titanium. 13 2400 15° Advantage: Ideally suited for use on resilient materials and thin-walled components. Low frictional resistance, thus no material deformation is caused. The left hand spiral evacuates the swarf L in the cutting direction. ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 2400 15 15 18 9 3 4 ● ● M 13 2400 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Through hole machine tap with interrupted thread HSS-E-PM mm mm mm mm mm M2,5 eShop 0.45 50 2.8 2.1 2.05 M3 eShop 0.5 56 3.5 2.7 2.5 M4 eShop 0.7 63 4.5 3.4 3.3 M5 eShop 0.8 70 6 4.9 4.2 M6 eShop 1 80 6 4.9 5 M8 eShop 1.25 90 8 6.2 6.8 M10 eShop 1.5 100 10 8 8.5 M12 eShop 1.75 110 12 9 10.2 M16 eShop 2 110 12 9 14 275
