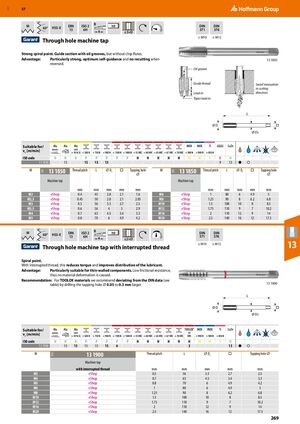

GBP 57 M B 60° HSS-E DIN ISO 2 h9 DIN DIN 13 6H 371 376 4 ≤3×D ≤ M10 ≥ M12 Through hole machine tap Strong spiral point. Guide section with oil grooves, but without chip flutes. Advantage: Particularly strong, optimum self-guidance and no recutting when 13 1850​ reversed. Oil groove Guide thread Swarf evacuation in cutting Lead-in direction. Taper lead-in L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K N ​ ​ ​ ​ ​ 13 1850 13 15 15 15 9 13 ● ○ M 13 1850 Thread pitch L ⌀ Ds □ Tapping hole M 13 1850 Thread pitch L ⌀ Ds □ Tapping hole 11H ⌀ 11H ⌀ Machine tap Machine tap mm mm mm mm mm mm mm mm mm mm M2 eShop 0.4 45 2.8 2.1 1.6 M6 eShop 1 80 6 4.9 5 M2,5 eShop 0.45 50 2.8 2.1 2.05 M8 eShop 1.25 90 8 6.2 6.8 M3 eShop 0.5 56 3.5 2.7 2.5 M10 eShop 1.5 100 10 8 8.5 M3,5 eShop 0.6 56 4 3 2.9 M12 eShop 1.75 110 9 7 10.2 M4 eShop 0.7 63 4.5 3.4 3.3 M16 eShop 2 110 12 9 14 M5 eShop 0.8 70 6 4.9 4.2 M20 eShop 2.5 140 16 12 17.5 M B 60° HSS-E DIN ISO 2 h9 DIN DIN 13 6H 371 376 4 ≤2×D Through hole machine tap with interrupted thread ≤ M10 ≥ M12 13 Spiral point. With interrupted thread, this reduces torque and improves distribution of the lubricant. Advantage: Particularly suitable for thin-walled components. Low frictional resistance, thus no material deformation is caused. Recommendation: For TOOLOX materials we recommend deviating from the DIN data (see table) by drilling the tapping hole ⌀ 0.05 to 0.3 mm larger. 13 1900​ L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H H M M S N ​ ​ ​ ​ ​ 13 1900 13 13 15 15 15 6 3 13 ● ○ M 13 1900 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Machine tap with interrupted thread mm mm mm mm mm M3 eShop 0.5 56 3.5 2.7 2.5 M4 eShop 0.7 63 4.5 3.4 3.3 M5 eShop 0.8 70 6 4.9 4.2 M6 eShop 1 80 6 4.9 5 M8 eShop 1.25 90 8 6.2 6.8 M10 eShop 1.5 100 10 8 8.5 M12 eShop 1.75 110 9 7 10.2 M16 eShop 2 110 12 9 14 M20 eShop 2.5 140 16 12 17.5 269
