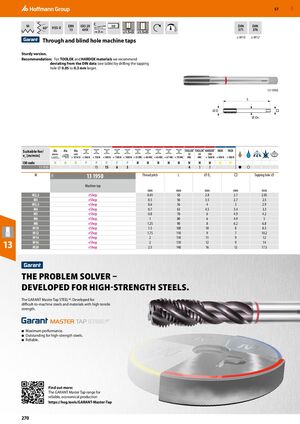

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 270

GBP 57 M C 60° HSS-E DIN ISO 2X h9 DIN DIN 13 6HX 371 376 3 ≤1.5×D ≤1.5×D ≤ M10 ≥ M12 Through and blind hole machine taps Sturdy version. Recommendation: For TOOLOX and HARDOX materials we recommend deviating from the DIN data (see table) by drilling the tapping hole ⌀ 0.05 to 0.3 mm larger. ​ 13 1950 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H H H H M M ​ ​ ​ ​ ​ 13 1950 15 15 6 3 4 3 3 ● ○ M 13 1950 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Machine tap mm mm mm mm mm M2,5 eShop 0.45 50 2.8 2.1 2.05 M3 eShop 0.5 56 3.5 2.7 2.5 M3,5 eShop 0.6 56 4 3 2.9 M4 eShop 0.7 63 4.5 3.4 3.3 M5 eShop 0.8 70 6 4.9 4.2 M6 eShop 1 80 6 4.9 5 M8 eShop 1.25 90 8 6.2 6.8 M10 eShop 1.5 100 10 8 8.5 M12 eShop 1.75 110 9 7 10.2 M14 eShop 2 110 11 9 12 13 M16 M20 eShop eShop 2 2.5 110 140 12 16 9 12 14 17.5 THE PROBLEM SOLVER – DEVELOPED FOR HIGH-STRENGTH STEELS. The GARANT Master Tap STEELHT: Developed for difficult-to-machine steels and materials with high tensile strength. ■ Maximum performance. ■ Outstanding for high-strength steels. ■ Reliable. Find out more: The GARANT Master Tap range for reliable, economical production https://hog.tools/GARANT-Master-Tap 270
