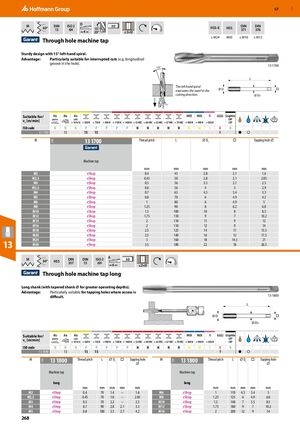

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 268

GBP 57 M D 60° DIN ISO 2 h9 HSS-E HSS DIN DIN 13 6H 15- 371 376 4 20° ≤3×D ≤ M24 M30 ≤ M10 ≥ M12 Through hole machine tap Sturdy design with 15° left-hand spiral. Advantage: Particularly suitable for interrupted cuts (e.g. longitudinal groove in the hole). 13 1700 15° L The left hand spiral ØD evacuates the swarf in the cutting direction.­​ Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K N ​ ​ ​ ​ ​ 13 1700 13 15 15 9 ● ○ M 13 1700 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Machine tap mm mm mm mm mm M2 eShop 0.4 45 2.8 2.1 1.6 M2,5 eShop 0.45 50 2.8 2.1 2.05 M3 eShop 0.5 56 3.5 2.7 2.5 M3,5 eShop 0.6 56 4 3 2.9 M4 eShop 0.7 63 4.5 3.4 3.3 M5 eShop 0.8 70 6 4.9 4.2 M6 eShop 1 80 6 4.9 5 M8 eShop 1.25 90 8 6.2 6.8 M10 eShop 1.5 100 10 8 8.5 M12 eShop 1.75 110 9 7 10.2 M14 eShop 2 110 11 9 12 M16 eShop 2 110 12 9 14 M18 eShop 2.5 125 14 11 15.5 M20 eShop 2.5 140 16 12 17.5 M24 eShop 3 160 18 14.5 21 13 M30 eShop 3.5 180 22 18 26.5 M A 60° HSS DIN DIN ISO 2 h9 357 13 6H 6 ≤2×D Through hole machine tap long Long shank (with tapered shank ⌀ for greater operating depths). Advantage: Particularly suitable for tapping holes where access is difficult. 13 1800 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K N ​ ​ ​ ​ ​ 13 1800 13 15 15 9 ● ○ M 13 1800 Thread pitch L ⌀ Ds □ Tapping hole M 13 1800 Thread pitch L ⌀ Ds □ Tapping hole 11H 11H ⌀ ⌀ Machine tap Machine tap long long mm mm mm mm mm mm mm mm mm mm M2 eShop 0.4 70 1.4 – 1.6 M6 eShop 1 110 4.5 3.4 5 M2,5 eShop 0.45 70 1.8 – 2.05 M8 eShop 1.25 125 6 4.9 6.8 M3 eShop 0.5 70 2.2 – 2.5 M10 eShop 1.5 140 7 5.5 8.5 M4 eShop 0.7 90 2.8 2.1 3.3 M12 eShop 1.75 180 9 7 10.2 M5 eShop 0.8 100 3.5 2.7 4.2 M16 eShop 2 200 12 9 14 268
