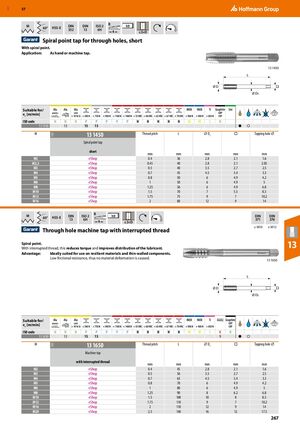

GBP 57 M B 60° HSS-E DIN DIN ISO 2 h9 352 13 6H 4 ≤3×D Spiral point tap for through holes, short With spiral point. Application: As hand or machine tap. 13 1450 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 1450 13 15 15 ● ○ M 13 1450 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Spiral point tap short mm mm mm mm mm M2 eShop 0.4 36 2.8 2.1 1.6 M2,5 eShop 0.45 40 2.8 2.1 2.05 M3 eShop 0.5 40 3.5 2.7 2.5 M4 eShop 0.7 45 4.5 3.4 3.3 M5 eShop 0.8 50 6 4.9 4.2 M6 eShop 1 50 6 4.9 5 M8 eShop 1.25 56 6 4.9 6.8 M10 eShop 1.5 70 7 5.5 8.5 M12 eShop 1.75 75 9 7 10.2 M16 eShop 2 80 12 9 14 M B 60° HSS-E DIN ISO 2 h9 DIN DIN 13 6H 371 376 4 ≤3×D ≤ M10 ≥ M12 Through hole machine tap with interrupted thread Spiral point. With interrupted thread, this reduces torque and improves distribution of the lubricant. 13 Advantage: Ideally suited for use on resilient materials and thin-walled components. Low frictional resistance, thus no material deformation is caused. 13 1650 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K N ​ ​ ​ ​ ​ 13 1650 13 15 15 9 ● ○ M 13 1650 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Machine tap with interrupted thread mm mm mm mm mm M2 eShop 0.4 45 2.8 2.1 1.6 M3 eShop 0.5 56 3.5 2.7 2.5 M4 eShop 0.7 63 4.5 3.4 3.3 M5 eShop 0.8 70 6 4.9 4.2 M6 eShop 1 80 6 4.9 5 M8 eShop 1.25 90 8 6.2 6.8 M10 eShop 1.5 100 10 8 8.5 M12 eShop 1.75 110 9 7 10.2 M16 eShop 2 110 12 9 14 M20 eShop 2.5 140 16 12 17.5 267
