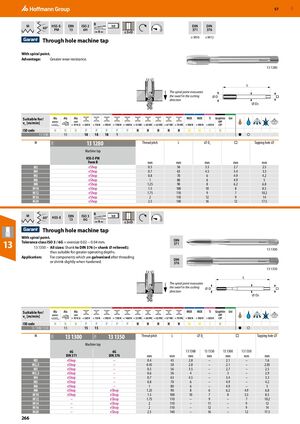

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 266

GBP 57 M B 60° HSS-E- DIN ISO 2 h9 DIN DIN PM 13 6H 371 376 4 ≤3×D ≤ M10 ≥ M12 Through hole machine tap With spiral point. Advantage: Greater wear resistance. 13 1280​ L The spiral point evacuates the swarf in the cutting ØD direction Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 1280 15 18 18 18 9 ● ○ M 13 1280 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Machine tap HSS-E-PM Form B mm mm mm mm mm M3 eShop 0.5 56 3.5 2.7 2.5 M4 eShop 0.7 63 4.5 3.4 3.3 M5 eShop 0.8 70 6 4.9 4.2 M6 eShop 1 80 6 4.9 5 M8 eShop 1.25 90 8 6.2 6.8 M10 eShop 1.5 100 10 8 8.5 M12 eShop 1.75 110 9 7 10.2 M16 eShop 2 110 12 9 14 M20 eShop 2.5 140 16 12 17.5 M B 60° HSS-E DIN ISO 3 h9 13 6G 4 ≤3×D Through hole machine tap With spiral point. DIN 13 Tolerance class ISO 3 / 6G = oversize 0.02 − 0.04 mm. 13 1350 – All sizes: Shank to DIN 376 (= shank ⌀ relieved); 371 13 1300​ thus suitable for greater operating depths. Application: For components which are galvanised after threading DIN or shrink slightly when hardened. 376 13 1350​ L The spiral point evacuates the swarf in the cutting ⌀D □ direction ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 1300/​1350 13 15 15 ● ○ M 13 1300 13 1350 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H 11H Machine tap 6G 6G ​ ​ 13 1300 13 1350 13 1300 13 1350 ​ DIN 371 DIN 376 mm mm mm mm mm mm mm M2 eShop – 0.4 45 2.8 – 2.1 – 1.6 M2,5 eShop – 0.45 50 2.8 – 2.1 – 2.05 M3 eShop – 0.5 56 3.5 – 2.7 – 2.5 M3,5 eShop – 0.6 56 4 – 3 – 2.9 M4 eShop – 0.7 63 4.5 – 3.4 – 3.3 M5 eShop – 0.8 70 6 – 4.9 – 4.2 M6 eShop – 1 80 6 – 4.9 – 5 M8 eShop eShop 1.25 90 8 6 6.2 4.9 6.8 M10 eShop eShop 1.5 100 10 7 8 5.5 8.5 M12 – eShop 1.75 110 – 9 – 7 10.2 M14 – eShop 2 110 – 11 – 9 12 M16 – eShop 2 110 – 12 – 9 14 M20 – eShop 2.5 140 – 16 – 12 17.5 266
