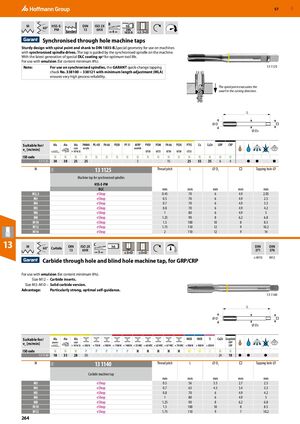

GBP 57 M B 60° HSS-E- PM DIN 13 ISO 2X 6HX h6 DIN Standard 4 1835 B ≤2.5×D Synchronised through hole machine taps Sturdy design with spiral point and shank to DIN 1835-B.Special geometry for use on machines with synchronised spindle drives. The tap is guided by the synchronised spindle on the machine. With the latest generation of special DLC coating sp2 for optimum tool life. For use with emulsion (fat content minimum 8%). Note: For use on synchronised spindles, the GARANT quick-change tapping 13 1125 chuck No. 338100 − 338121 with minimum length adjustment (MLA) ensures very high process reliability. The spiral point evacuates the swarf in the cutting direction. L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N N N N N N N N N N N N N N N N ​ ​ ​ ​ ​ 13 1125 30 30 25 25 5 15 25 55 35 6 4 ● ● ● M 13 1125 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Machine tap for synchronised spindles HSS-E-PM DLC mm mm mm mm mm M2,5 eShop 0.45 70 6 4.9 2.05 M3 eShop 0.5 70 6 4.9 2.5 M4 eShop 0.7 70 6 4.9 3.3 M5 eShop 0.8 70 6 4.9 4.2 M6 eShop 1 80 6 4.9 5 M8 eShop 1.25 90 8 6.2 6.8 M10 eShop 1.5 100 10 8 8.5 M12 eShop 1.75 110 12 9 10.2 M16 eShop 2 110 12 9 14 13 M 60° Carbide DIN 13 ISO 2X 6HX C h6 DIN 371 DIN 376 3 ≤3×D ≤3×D ≤ M10 M12 Carbide through hole and blind hole machine tap, for GRP/CRP For use with emulsion (fat content minimum 8%). Size M12 – Carbide inserts. Size M3–M10 – Solid carbide version. Advantage: Particularly strong, optimal self-guidance. 13 1140 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N N ​ ​ ​ ​ ​ 13 1140 18 35 28 30 24 10 ● ● ● M 13 1140 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Carbide machine tap mm mm mm mm mm M3 eShop 0.5 56 3.5 2.7 2.5 M4 eShop 0.7 63 4.5 3.4 3.3 M5 eShop 0.8 70 6 4.9 4.2 M6 eShop 1 80 6 4.9 5 M8 eShop 1.25 90 8 6.2 6.8 M10 eShop 1.5 100 10 8 8.5 M12 eShop 1.75 110 9 7 10.2 264
