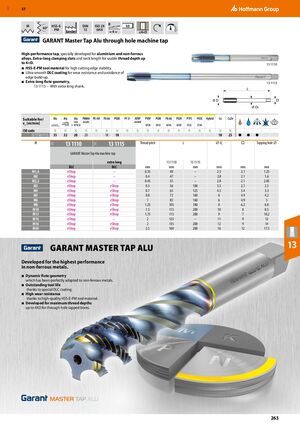

GBP 57 M B 60° HSS-E- DIN ISO 2X h9 PM Standard 13 6HX 4 ≤4×D GARANT Master Tap Alu through hole machine tap High-performance tap, specially developed for aluminium and non-ferrous alloys. Extra-long clamping slots and neck length for usable thread depth up to 4×D. 13 1110 ■ HSS-E-PM tool material for high cutting edge stability. ■ Ultra-smooth DLC coating for wear resistance and avoidance of edge build-up. ■ Extra-long flute geometry. 13 1115 13 1115 – With extra long shank. L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N N N N N N N N N N N N N N N N ​ ​ ​ ​ ​ 13 1110/​1115 35 32 20 20 18 18 18 25 ● ● ● M 13 1110 13 1115 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11I 11I GARANT Master Tap Alu machine tap extra long ​ 13 1110 13 1115 ​ ​ ​ DLC DLC mm mm mm mm mm mm M1,6 eShop – 0.35 40 – 2.5 2.1 1.25 M2 eShop – 0.4 47 – 2.8 2.1 1.6 M2,5 eShop – 0.45 55 – 2.8 2.1 2.05 M3 eShop eShop 0.5 56 100 3.5 2.7 2.5 M4 eShop eShop 0.7 65 125 4.5 3.4 3.3 M5 eShop eShop 0.8 72 160 6 4.9 4.2 M6 eShop eShop 1 85 160 6 4.9 5 M8 eShop eShop 1.25 105 180 8 6.2 6.8 M10 eShop eShop 1.5 115 200 10 8 8.5 M12 eShop eShop 1.75 115 200 9 7 10.2 M14 eShop – 2 125 – 11 9 12 M16 eShop eShop 2 135 200 12 9 14 M20 eShop eShop 2.5 160 200 16 12 17.5 GARANT MASTER TAP ALU 13 Developed for the highest performance in non-ferrous metals. ■ Dynamic flute geometry which has been perfectly adapted to non-ferrous metals. ■ Outstanding tool life thanks to special DLC coating. ■ High wear resistance thanks to high-quality HSS-E-PM tool material. ■ Developed for maximum thread depths up to 4XD for through-hole tapped bores. 263
