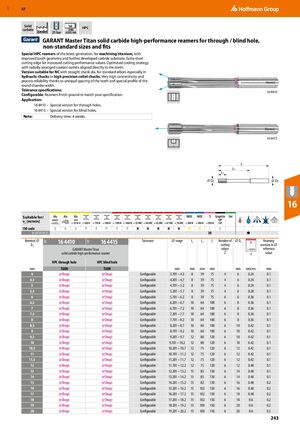

GBP 57 Solid h6 HPC carbide Standard DIN 25 bar 6535 HA GARANT Master Titan solid carbide high-performance reamers for through / blind hole, non-standard sizes and fits Special HPC reamers of the latest generation, for machining titanium, with improved tooth geometry and further developed carbide substrate. Extra-short cutting edge for increased cutting performance values. Optimised cooling strategy with radially arranged coolant outlets aligned directly to the teeth. Version suitable for NC with straight shank dia. for standard arbors especially in hydraulic chucks or high precision collet chucks. Very high concentricity and process reliability thanks to unequal spacing of the teeth and special profile of the round chamfer width. Tolerance specifications: 16 4410 Configurable: Reamers finish ground to match your specification. Application: 16 4410 – Special version for through holes. 16 4415 – Special version for blind holes. Note: Delivery time: 4 weeks. 16 4415 L L1 Lc ⌀ DC ⌀ DS 16 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 16 4410/​4415 30 ● Nominal ⌀ 16 4410 16 4415 Tolerance ⌀ range Lc L1 L Number of ⌀ Ds Reaming 10P 10P Ti DC cutting oversize in ⌀ GARANT Master Titan edges > 850 N reference solid carbide high-performance reamer Z f value HPC through hole HPC blind hole mm TiAlN TiAlN ​ mm mm mm mm ​ mm mm/rev. mm 4 (eShop) (eShop) Configurable 3.701 – 4.2 8 39 75 4 6 0.24 0.1 4,5 (eShop) (eShop) Configurable 4.201 – 4.7 8 39 75 4 6 0.24 0.1 5 (eShop) (eShop) Configurable 4.701 – 5.2 8 39 75 4 6 0.24 0.1 5,5 (eShop) (eShop) Configurable 5.201 – 5.7 8 39 75 4 6 0.28 0.1 6 (eShop) (eShop) Configurable 5.701 – 6.2 8 39 75 6 6 0.36 0.1 6,5 (eShop) (eShop) Configurable 6.201 – 6.7 10 64 100 6 8 0.36 0.1 7 (eShop) (eShop) Configurable 6.701 – 7.2 10 64 100 6 8 0.36 0.1 7,5 (eShop) (eShop) Configurable 7.201 – 7.7 10 64 100 6 8 0.36 0.1 8 (eShop) (eShop) Configurable 7.701 – 8.2 10 64 100 6 8 0.36 0.1 8,5 (eShop) (eShop) Configurable 8.201 – 8.7 10 60 100 6 10 0.42 0.1 9 (eShop) (eShop) Configurable 8.701 – 9.2 10 60 100 6 10 0.42 0.1 9,5 (eShop) (eShop) Configurable 9.201 – 9.7 12 80 120 6 10 0.42 0.1 10 (eShop) (eShop) Configurable 9.701 – 10.2 12 80 120 6 10 0.42 0.1 10,5 (eShop) (eShop) Configurable 10.201 – 10.7 12 75 120 6 12 0.42 0.1 11 (eShop) (eShop) Configurable 10.701 – 11.2 12 75 120 6 12 0.42 0.1 11,5 (eShop) (eShop) Configurable 11.201 – 11.7 12 75 120 6 12 0.42 0.1 12 (eShop) (eShop) Configurable 11.701 – 12.2 12 75 120 6 12 0.48 0.1 13 (eShop) (eShop) Configurable 12.201 – 13.2 15 85 130 6 14 0.48 0.1 14 (eShop) (eShop) Configurable 13.201 – 14.2 15 85 130 6 14 0.48 0.1 15 (eShop) (eShop) Configurable 14.201 – 15.2 15 82 130 6 16 0.48 0.2 16 (eShop) (eShop) Configurable 15.201 – 16.2 15 102 150 6 16 0.48 0.2 17 (eShop) (eShop) Configurable 16.201 – 17.2 15 102 150 6 18 0.48 0.2 18 (eShop) (eShop) Configurable 17.201 – 18.2 15 102 150 6 18 0.6 0.2 19 (eShop) (eShop) Configurable 18.201 – 19.2 15 100 150 6 20 0.6 0.2 20 (eShop) (eShop) Configurable 19.201 – 20.2 15 100 150 6 20 0.6 0.2 243
