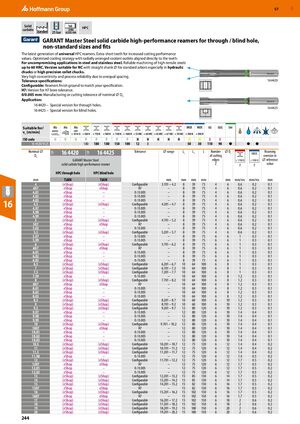

GBP 57 Solid h6 HPC carbide Standard DIN 25 bar 6535 HA GARANT Master Steel solid carbide high-performance reamers for through / blind hole, non-standard sizes and fits The latest generation of universal HPC reamers. Extra-short teeth for increased cutting performance values. Optimised cooling strategy with radially arranged coolant outlets aligned directly to the teeth. For uncompromising applications in steel and stainless steel. Reliable machining of high-tensile steels up to 60 HRC. Version suitable for NC with straight shank ⌀ for standard arbors especially in hydraulic chucks or high precision collet chucks. Very high concentricity and process reliability due to unequal spacing. Tolerance specifications: 16 4420 Configurable: Reamers finish ground to match your specification. H7: Version for H7 bore tolerance. 0/0.005 mm: Manufacturing or cutting tolerance of nominal ⌀ DC. Application: 16 4420 – Special version for through holes. 16 4425 16 4425 – Special version for blind holes. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K K ​ ​ ​ ​ ​ ​ 16 4420/​4425 180 180 180 150 100 12 8 50 30 110 90 ● ● ● Nominal ⌀ 16 4420 16 4425 Tolerance ⌀ range Lc L1 L Number ⌀ Ds Reaming 10P 10P INOX DC of cutting oversize in GARANT Master Steel edges < 1100 N < 900 N ⌀ reference solid carbide high-performance reamer Z f f value HPC through hole HPC blind hole mm TiAlN TiAlN ​ mm mm mm mm ​ mm mm/rev. mm/rev. mm 4 (eShop) (eShop) Configurable 3.701 – 4.2 8 39 75 4 6 0.6 0.2 0.1 4H7 eShop eShop H7 – 8 39 75 4 6 0.6 0.2 0.1 4,01 eShop – 0 / 0.005 – 8 39 75 4 6 0.6 0.2 0.1 4,02 eShop – 0 / 0.005 – 8 39 75 4 6 0.6 0.2 0.1 4,03 eShop – 0 / 0.005 – 8 39 75 4 6 0.6 0.2 0.1 16 4,5 4,97 (eShop) eShop (eShop) – Configurable 0 / 0.005 4.201 – 4.7 – 8 8 39 39 75 75 4 4 6 6 0.6 0.6 0.2 0.2 0.1 0.1 4,98 eShop – 0 / 0.005 – 8 39 75 4 6 0.6 0.2 0.1 4,99 eShop – 0 / 0.005 – 8 39 75 4 6 0.6 0.2 0.1 5 (eShop) (eShop) Configurable 4.701 – 5.2 8 39 75 4 6 0.6 0.2 0.1 5H7 eShop eShop H7 – 8 39 75 4 6 0.6 0.2 0.1 5,02 eShop – 0 / 0.005 – 8 39 75 4 6 0.6 0.2 0.1 5,5 (eShop) (eShop) Configurable 5.201 – 5.7 8 39 75 4 6 0.6 0.2 0.1 5,97 eShop – 0 / 0.005 – 8 39 75 6 6 1 0.3 0.1 5,99 eShop – 0 / 0.005 – 8 39 75 6 6 1 0.3 0.1 6 (eShop) (eShop) Configurable 5.701 – 6.2 8 39 75 6 6 1 0.3 0.1 6H7 eShop eShop H7 – 8 39 75 6 6 1 0.3 0.1 6,01 eShop – 0 / 0.005 – 8 39 75 6 6 1 0.3 0.1 6,02 eShop – 0 / 0.005 – 8 39 75 6 6 1 0.3 0.1 6,03 eShop – 0 / 0.005 – 8 39 75 6 6 1 0.3 0.1 6,5 (eShop) (eShop) Configurable 6.201 – 6.7 10 64 100 6 8 1 0.3 0.1 7 (eShop) (eShop) Configurable 6.701 – 7.2 10 64 100 6 8 1 0.3 0.1 7,5 (eShop) (eShop) Configurable 7.201 – 7.7 10 64 100 6 8 1 0.3 0.1 7,99 eShop – 0 / 0.005 – 10 64 100 6 8 1.2 0.3 0.1 8 (eShop) (eShop) Configurable 7.701 – 8.2 10 64 100 6 8 1.2 0.3 0.1 8H7 eShop eShop H7 – 10 64 100 6 8 1.2 0.3 0.1 8,01 eShop – 0 / 0.005 – 10 64 100 6 8 1.2 0.3 0.1 8,02 eShop – 0 / 0.005 – 10 64 100 6 8 1.2 0.3 0.1 8,03 eShop – 0 / 0.005 – 10 64 100 6 8 1.2 0.3 0.1 8,5 (eShop) (eShop) Configurable 8.201 – 8.7 10 60 100 6 10 1.2 0.3 0.1 9 (eShop) (eShop) Configurable 8.701 – 9.2 10 60 100 6 10 1.2 0.3 0.1 9,5 (eShop) (eShop) Configurable 9.201 – 9.7 12 80 120 6 10 1.2 0.3 0.1 9,97 eShop – 0 / 0.005 – 12 80 120 6 10 1.4 0.4 0.1 9,98 eShop – 0 / 0.005 – 12 80 120 6 10 1.4 0.4 0.1 9,99 eShop – 0 / 0.005 – 12 80 120 6 10 1.4 0.4 0.1 10 (eShop) (eShop) Configurable 9.701 – 10.2 12 80 120 6 10 1.4 0.4 0.1 10H7 eShop eShop H7 – 12 80 120 6 10 1.4 0.4 0.1 10,01 eShop – 0 / 0.005 – 12 80 120 6 10 1.4 0.4 0.1 10,02 eShop – 0 / 0.005 – 12 80 120 6 10 1.4 0.4 0.1 10,03 eShop – 0 / 0.005 – 12 80 120 6 10 1.4 0.4 0.1 10,5 (eShop) (eShop) Configurable 10.201 – 10.7 12 75 120 6 12 1.4 0.4 0.2 11 (eShop) (eShop) Configurable 10.701 – 11.2 12 75 120 6 12 1.4 0.4 0.2 11,5 (eShop) (eShop) Configurable 11.201 – 11.7 12 75 120 6 12 1.4 0.4 0.2 11,98 eShop – 0 / 0.005 – 12 75 120 6 12 1.4 0.5 0.2 12 (eShop) (eShop) Configurable 11.701 – 12.2 12 75 120 6 12 1.7 0.5 0.2 12H7 eShop eShop H7 – 12 75 120 6 12 1.7 0.5 0.2 12,01 eShop – 0 / 0.005 – 12 75 120 6 12 1.7 0.5 0.2 12,02 eShop – 0 / 0.005 – 12 75 120 6 12 1.7 0.5 0.2 13 (eShop) (eShop) Configurable 12.201 – 13.2 15 85 130 6 14 1.7 0.5 0.2 14 (eShop) (eShop) Configurable 13.201 – 14.2 15 85 130 6 14 1.7 0.5 0.2 15 (eShop) (eShop) Configurable 14.201 – 15.2 15 82 130 6 16 1.7 0.5 0.2 15H7 eShop eShop H7 – 15 82 130 6 16 1.7 0.5 0.2 16 (eShop) (eShop) Configurable 15.201 – 16.2 15 102 150 6 16 1.7 0.5 0.2 16H7 eShop eShop H7 – 15 102 150 6 16 1.7 0.5 0.2 17 (eShop) (eShop) Configurable 16.201 – 17.2 15 102 150 6 18 2 0.6 0.2 18 (eShop) (eShop) Configurable 17.201 – 18.2 15 102 150 6 18 2 0.6 0.2 19 (eShop) (eShop) Configurable 18.201 – 19.2 15 100 150 6 20 2 0.6 0.2 20 (eShop) (eShop) Configurable 19.201 – 20.2 15 100 150 6 20 2 0.6 0.2 244
