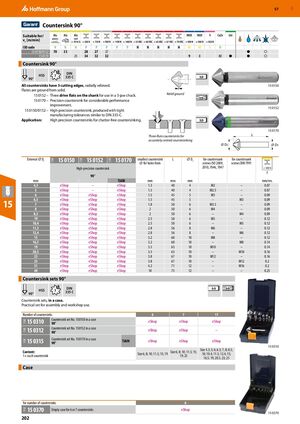

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 202

GBP 57 ​ Countersink 90° Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 15 0150/​0152 70 33 28 27 27 ● ○ 15 0170 25 34 32 32 9 8 80 ● ● ○ Countersink 90° ​ HSS DIN 3 335 C h9 90° All countersinks have 3 cutting edges, radially relieved. 15 0150 Flutes are ground from solid. 15 0152 – Three drive flats on the shank for use in a 3-jaw chuck. Relief ground h9 15 0170 – Precision countersink for considerable performance improvement. 15 0152 15 0150/0152 – High-precision countersink, produced with tight manufacturing tolerances similar to DIN 335-C. Application: High precision countersinks for chatter-free countersinking. h9 15 0170 Three-flute countersinks for L accurately centred countersinking ⌀ DC ⌀ DS External ⌀ Dc 15 0150 15 0152 15 0170 smallest countersink L ⌀ Ds for countersunk for countersunk 11M 11M 11M ⌀ for holes from screws ISO 2009, screws DIN 7991 High-precision countersink 2010, 7046, 7047 < 500 N f 90° mm TiAlN mm mm mm ​ ​ mm/rev. 4,3 eShop – eShop 1.3 40 4 M2 – 0.07 5 eShop – eShop 1.5 40 4 M2.5 – 0.07 6 eShop eShop eShop 1.5 45 5 M3 – 0.09 6,3 eShop eShop eShop 1.5 45 5 – M3 0.09 15 7 8 eShop eShop eShop eShop eShop eShop 1.8 2 50 50 6 6 M3.5 M4 – – 0.09 0.09 8,3 eShop eShop eShop 2 50 6 – M4 0.09 10 eShop eShop eShop 2.5 50 6 M5 – 0.12 10,4 eShop eShop eShop 2.5 50 6 – M5 0.12 11,5 eShop eShop eShop 2.8 56 8 M6 – 0.12 12,4 eShop eShop eShop 2.8 56 8 – M6 0.12 15 eShop eShop eShop 3.2 60 10 M8 – 0.12 16,5 eShop eShop eShop 3.2 60 10 – M8 0.14 19 eShop eShop eShop 3.5 63 10 M10 – 0.14 20,5 eShop eShop eShop 3.5 63 10 – M10 0.16 23 eShop eShop eShop 3.8 67 10 M12 – 0.16 25 eShop eShop eShop 3.8 67 10 – M12 0.2 31 eShop eShop eShop 4.2 71 12 – M16 0.2 40 eShop eShop eShop 10 75 12 – – 0.25 Countersink sets 90° ​ HSS DIN h9 h9 3 335 C 90° Countersink sets, in a case. Practical set for assembly and workshop use. Number of countersinks 6 7 17 Countersink set No. 150150 in a case 15 0310 11M eShop eShop eShop 90° Countersink set No. 150152 in a case 15 0312 11M eShop eShop – 90° Countersink set No. 150170 in a case 15 0315 11M TiAlN eShop eShop eShop 90° 15 0310 Size 4.3; 5; 6; 6.3; 7; 8; 8.3; Content: Size 6; 8; 10; 11.5; 15; 19 Size 6; 8;19;10;2511.5; 15; 10; 10.4; 11.5; 12.4; 15; 1× each countersink 16.5; 19; 20.5; 23; 25 Case ​ for number of countersinks 6 15 0370 11M Empty case for 6 or 7 countersinks eShop 15 0370 202
