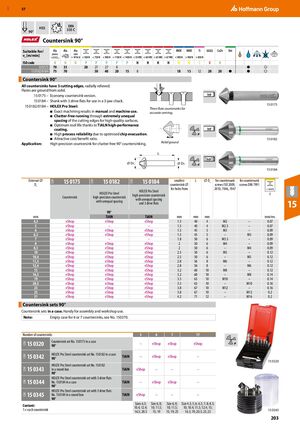

GBP 57 HSS DIN 3 335 C 90° Countersink 90° Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 15 0175 70 33 28 27 27 8 ● ○ 15 0182/​0184 75 70 50 40 20 15 8 18 15 12 20 20 ● ● ○ Countersink 90° ​ All countersinks have 3 cutting edges, radially relieved. Flutes are ground from solid. 15 0175 – Economy countersink version. h9 15 0184 – Shank with 3 drive flats for use in a 3-jaw chuck. 15 0182/0184 – HOLEX Pro Steel: 15 0175 Three-flute countersinks for ■ Exact machining results in manual and machine use. accurate centring. ■ Chatter-free running through extremely unequal spacing of the cutting edges for high-quality surfaces. ■ Optimum tool life thanks to TiALN high-performance coating. h9 ■ High process reliability due to optimised chip evacuation. ■ Attractive cost/benefit ratio. 15 0182 Application: High-precision countersink for chatter-free 90° countersinking. Relief ground L h9 ⌀ DC ⌀ DS 15 0184 External ⌀ 15 0175 15 0182 15 0184 smallest L ⌀ Ds for countersunk for countersunk 12M 12M 12M Dc countersink ⌀ screws ISO 2009, screws DIN 7991 for holes from 2010, 7046, 7047 < 500 N HOLEX Pro Steel HOLEX Pro Steel f high-precision countersink Countersink high-precision countersink with unequal spacing with unequal spacing and 3 drive flats 15 90° mm TiAlN TiAlN mm mm mm ​ ​ mm/rev. 4,3 eShop eShop eShop 1.3 40 4 M2 – 0.07 5 eShop – – 1.5 40 4 M2.5 – 0.07 6 eShop eShop eShop 1.5 45 5 M3 – 0.09 6,3 eShop eShop eShop 1.5 45 5 – M3 0.09 7 eShop – – 1.8 50 6 M3.5 – 0.09 8 eShop eShop eShop 2 50 6 M4 – 0.09 8,3 eShop eShop eShop 2 50 6 – M4 0.09 10 eShop eShop eShop 2.5 50 6 M5 – 0.12 10,4 eShop eShop eShop 2.5 50 6 – M5 0.12 11,5 eShop eShop eShop 2.8 56 8 M6 – 0.12 12,4 eShop eShop eShop 2.8 56 8 – M6 0.12 15 eShop eShop eShop 3.2 60 10 M8 – 0.12 16,5 eShop eShop eShop 3.2 60 10 – M8 0.14 19 eShop eShop eShop 3.5 63 10 M10 – 0.14 20,5 eShop eShop eShop 3.5 63 10 – M10 0.16 23 eShop eShop eShop 3.8 67 10 M12 – 0.16 25 eShop eShop eShop 3.8 67 10 – M12 0.2 31 eShop eShop eShop 4.2 71 12 – M16 0.2 Countersink sets 90° ​ Countersink sets in a case. Handy for assembly and workshop use. Note: Empty case for 6 or 7 countersinks, see No. 150370. Number of countersinks 5 6 7 17 Countersink set No. 150175 in a case 15 0320 12M – eShop eShop eShop 90° HOLEX Pro Steel countersink set No. 150182 in a case 15 0342 12M TiAlN – eShop eShop – 90° 15 0320 HOLEX Pro Steel countersink set No. 150182 15 0343 12M in a round box TiAlN eShop – – – 90° HOLEX Pro Steel countersink set with 3 drive flats 15 0344 12M No. 150184 in a case TiAlN – eShop eShop – 90° HOLEX Pro Steel countersink set with 3 drive flats 15 0345 12M No. 150184 in a round box TiAlN eShop – – – 90° Sizes 6.3; Size 6; 8; Size 6; 8; Size 4.3; 5; 6; 6.3; 7; 8; 8.3; Content: 10.4; 12.4; 10; 11.5; 10; 11.5; 10; 10.4; 11.5; 12.4; 15; 1× each countersink 15 0343 16.5; 20.5 15; 19 15; 19; 25 16.5; 19; 20.5; 23; 25 203
