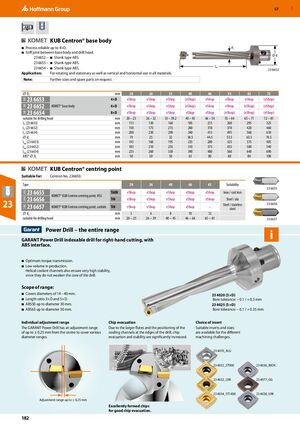

GBP 57 ABS KUB Centron® base body ■ Process reliable up to 4×D. d1 ■ Stiff joint between base body and drill head. ⌀d 23 6652 – ■ Shank type ABS. 23 6653 – ■ Shank type ABS. LN 23 6654 – ■ Shank type ABS. 23 6652 Application: For rotating and stationary as well as vertical and horizontal use in all materials. Note: Further sizes and spare parts on request. ⌀ DC mm 20 26 33 40 46 55 65 72 23 6653 4×D eShop eShop eShop (eShop) eShop eShop eShop (eShop) 24K 24K 24K 23 6652 KOMET® base body 6×D eShop eShop eShop (eShop) eShop eShop (eShop) (eShop) 23 6654 8×D eShop eShop eShop eShop eShop (eShop) (eShop) (eShop) suitable for drilling head mm 20 – 25 26 – 32 33 – 39.2 40 – 45 46 – 54 55 – 64 65 – 71 72 – 81 L1 (23 6653) mm 113 130 160 185 215 260 295 325 L1 (23 6652) mm 150 175 215 260 310 370 420 460 L1 (23 6654) mm 200 230 290 340 415 495 560 610 ⌀ d1 mm 19 25 32 38.5 44.5 53.5 63.5 70.5 Ltot (23 6653) mm 145 160 195 235 280 325 375 405 Ltot (23 6652) mm 185 210 255 310 375 435 500 540 Ltot (23 6654) mm 235 260 330 390 480 560 640 690 ABS® ⌀ Ds mm 50 50 50 63 80 80 80 100 ​ KUB Centron® centring point Suitable for: Centron No. 236650. Type 20 26 40 46 65 Suitability 23 6655 23 6655 24M 24M 24M TiAlN eShop eShop eShop eShop eShop Inox / cast iron KOMET® KUB Centron centring point, HSS 23 6656 TiN eShop eShop eShop eShop eShop Steel / alu 23 23 6657 KOMET® KUB Centron centring point, carbide TiN eShop eShop eShop eShop – Steel / stainless steel 23 6656 ⌀ d2 mm 5 6 8 10 12 ​ suitable for drilling head mm 20 − 25 26 − 39 40 − 45 46 − 64 65 − 81 ​ 23 6657 Power Drill – the entire range GARANT Power Drill indexable drill for right-hand cutting, with ABS interface. ■ Optimum torque transmission. ■ Low volume in production. Helical coolant channels also ensure very high stability, since they do not weaken the core of the drill. Scope of range: ■ Covers diameters of 14 – 40 mm. 23 4020 (3 × D) ■ Length ratio 3 × D and 5 × D. Bore tolerance: − 0.1 / + 0.3 mm ■ ABS50 up to diameter 30 mm. 23 4025 (5 × D) ■ ABS63 up to diameter 50 mm. Bore tolerance: − 0.1 / + 0.35 mm Individual adjustment range Chip evacuation Choice of insert The GARANT Power Drill has an adjustment range Due to the larger flutes and the positioning of the Suitable inserts and sizes of up to ± 0.25 mm from the centre to cover various cooling channels at the edges of the drill, chip are available for the different diameter ranges. evacuation and stability are significantly increased. machining challenges. 23 4070_ALU 23 4032_ST900 23 4036_INOX 23 4032_UNI 23 4077_GG 23 4034_ST1400 23 4038_UNI Adjustment range up to ± 0.25 mm Excellently formed chips for good chip evacuation. 182
