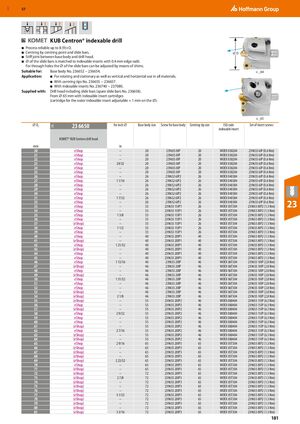

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 181

GBP 57 KUB Centron® indexable drill ■ Process reliable up to 8 (9)×D. ■ Centring by centring point and slide bars. ⌀D ■ Stiff joint between base body and drill head. ■ ⌀ of the slide bars is matched to indexable inserts with 0.4 mm edge radii. For through holes the ⌀ of the slide bars can be adjusted by means of shims. Suitable for: Base body No. 236652 − 236654. ≤ _64 Application: ■ For rotating and stationary as well as vertical and horizontal use in all materials. ■ With centring tips No. 236655 − 236657. ■ With indexable inserts No. 236740 − 237080. Supplied with: Drill head including slide bars (spare slide bars No. 236658). From ⌀ 65 mm with indexable insert cartridges (cartridge for the outer indexable insert adjustable + 1 mm on the ⌀). ≥ _65 ⌀ DC 23 6650 for inch ⌀ Base body size Screw for base body Centring tip size ISO code Set of insert screws 24L indexable insert KOMET® KUB Centron drill head mm in ​ ​ ​ ​ ​ 20 eShop – 20 239655 8IP 20 WOEX 030204 239655 6IP (0.6 Nm) 21 eShop – 20 239655 8IP 20 WOEX 030204 239655 6IP (0.6 Nm) 22 eShop – 20 239655 8IP 20 WOEX 030204 239655 6IP (0.6 Nm) 23 eShop 29/32 20 239655 8IP 20 WOEX 030204 239655 6IP (0.6 Nm) 24 eShop – 20 239655 8IP 20 WOEX 030204 239655 6IP (0.6 Nm) 25 eShop – 20 239655 8IP 20 WOEX 030204 239655 6IP (0.6 Nm) 26 eShop – 26 239652 6IP2 26 WOEX 040304 239655 6IP (0.6 Nm) 27 eShop 1 1/16 26 239652 6IP2 26 WOEX 040304 239655 6IP (0.6 Nm) 28 eShop – 26 239652 6IP2 26 WOEX 040304 239655 6IP (0.6 Nm) 29 eShop – 26 239652 6IP2 26 WOEX 040304 239655 6IP (0.6 Nm) 30 eShop – 26 239652 6IP2 26 WOEX 040304 239655 6IP (0.6 Nm) 31 eShop 1 7/32 26 239652 6IP2 26 WOEX 040304 239655 6IP (0.6 Nm) 32 33 34 eShop eShop eShop – – – 26 33 33 239652 6IP2 239655 15IP1 239655 15IP1 26 26 26 WOEX 040304 WOEX 05T304 WOEX 05T304 239655 6IP (0.6 Nm) 239655 8IP2 (1.3 Nm) 239655 8IP2 (1.3 Nm) 23 35 eShop 1 3/8 33 239655 15IP1 26 WOEX 05T304 239655 8IP2 (1.3 Nm) 36 eShop – 33 239655 15IP1 26 WOEX 05T304 239655 8IP2 (1.3 Nm) 37 (eShop) – 33 239655 15IP1 26 WOEX 05T304 239655 8IP2 (1.3 Nm) 38 eShop 1 1/2 33 239655 15IP1 26 WOEX 05T304 239655 8IP2 (1.3 Nm) 39 eShop – 33 239655 15IP1 26 WOEX 05T304 239655 8IP2 (1.3 Nm) 40 eShop – 40 239655 20IP1 40 WOEX 05T304 239655 8IP2 (1.3 Nm) 41 (eShop) – 40 239655 20IP1 40 WOEX 05T304 239655 8IP2 (1.3 Nm) 42 eShop 1 21/32 40 239655 20IP1 40 WOEX 05T304 239655 8IP2 (1.3 Nm) 43 (eShop) – 40 239655 20IP1 40 WOEX 05T304 239655 8IP2 (1.3 Nm) 44 eShop – 40 239655 20IP1 40 WOEX 05T304 239655 8IP2 (1.3 Nm) 45 eShop – 40 239655 20IP1 40 WOEX 05T304 239655 8IP2 (1.3 Nm) 46 eShop 1 13/16 46 239655 20IP 46 WOEX 06T304 239655 10IP (2.8 Nm) 47 (eShop) – 46 239655 20IP 46 WOEX 06T304 239655 10IP (2.8 Nm) 48 eShop – 46 239655 20IP 46 WOEX 06T304 239655 10IP (2.8 Nm) 49 (eShop) – 46 239655 20IP 46 WOEX 06T304 239655 10IP (2.8 Nm) 50 eShop 1 31/32 46 239655 20IP 46 WOEX 06T304 239655 10IP (2.8 Nm) 51 eShop – 46 239655 20IP 46 WOEX 06T304 239655 10IP (2.8 Nm) 52 eShop – 46 239655 20IP 46 WOEX 06T304 239655 10IP (2.8 Nm) 53 (eShop) – 46 239655 20IP 46 WOEX 06T304 239655 10IP (2.8 Nm) 54 (eShop) 2 1/8 46 239655 20IP 46 WOEX 06T304 239655 10IP (2.8 Nm) 55 (eShop) – 55 239655 20IP2 46 WOEX 080404 239655 15IP (6.3 Nm) 56 eShop – 55 239655 20IP2 46 WOEX 080404 239655 15IP (6.3 Nm) 57 (eShop) – 55 239655 20IP2 46 WOEX 080404 239655 15IP (6.3 Nm) 58 eShop 2 9/32 55 239655 20IP2 46 WOEX 080404 239655 15IP (6.3 Nm) 59 eShop – 55 239655 20IP2 46 WOEX 080404 239655 15IP (6.3 Nm) 60 eShop – 55 239655 20IP2 46 WOEX 080404 239655 15IP (6.3 Nm) 61 (eShop) – 55 239655 20IP2 46 WOEX 080404 239655 15IP (6.3 Nm) 62 eShop 2 7/16 55 239655 20IP2 46 WOEX 080404 239655 15IP (6.3 Nm) 63 (eShop) – 55 239655 20IP2 46 WOEX 080404 239655 15IP (6.3 Nm) 64 (eShop) – 55 239655 20IP2 46 WOEX 080404 239655 15IP (6.3 Nm) 65 eShop 2 9/16 65 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 66 (eShop) – 65 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 67 (eShop) – 65 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 68 (eShop) – 65 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 69 (eShop) 2 23/32 65 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 70 eShop – 65 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 71 (eShop) – 65 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 72 (eShop) – 72 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 73 (eShop) 2 7/8 72 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 74 (eShop) – 72 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 75 (eShop) – 72 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 76 (eShop) – 72 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 77 (eShop) 3 1/32 72 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 78 (eShop) – 72 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 79 (eShop) – 72 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 80 (eShop) – 72 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 81 (eShop) 3 3/16 72 239655 20IP3 65 WOEX 05T304 239655 8IP2 (1.3 Nm) 181
