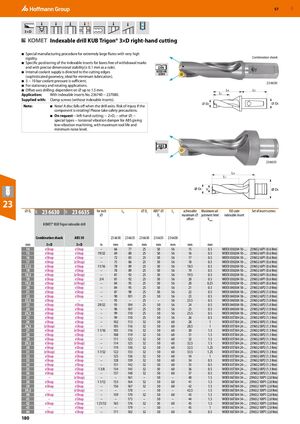

GBP 57 3×D Indexable drill KUB Trigon® 3×D right-hand cutting ■ Special manufacturing procedure for extremely large flutes with very high rigidity. Combination shank ■ Specific positioning of the indexable inserts for bores free of withdrawal marks and with precise dimensional stability(± 0.1 mm as a rule). DIN ■ Internal coolant supply is directed to the cutting edges 6535 HE 6595 (sophisticated geometry, ideal for minimum lubrication). ■ 3 − 10 bar coolant pressure is sufficient. 23 6630​ ■ For stationary and rotating applications. ■ Offset-axis drilling: dependent on ⌀ up to 1.5 mm. LA LS Application: With indexable inserts No. 236740 − 237080. L1 Supplied with: Clamp screws (without indexable inserts). ⌀ DC ⌀ DS Note: ■ Note! A disc falls off when the drill exits. Risk of injury if the component is rotating! Please take safety precautions. ■ On request − left-hand cutting; − 2×D, − other ⌀; − special types − torsional vibration damper for ABS giving low-vibration machining, with maximum tool life and minimum noise level. ABS 23 6635​ LA L1 DC V DS 23 ⌀ DC 23 6630 23 6635 for inch LA ⌀ Ds ABS® ⌀ Ls achievable Maximum ad- ISO code Set of insert screws 24P 24P ⌀ Ds maximum ⌀ justment limit indexable insert offset Vmax KOMET® KUB Trigon indexable drill Combination shank ABS 50 ​ 23 6630 23 6635 23 6630 23 6635 23 6630 ​ ​ ​ mm 3×D 3×D in mm mm mm mm mm mm mm ​ ​ 14 eShop eShop – 66 77 25 50 56 15 0.5 WOEX 030204 10-... 239652 6IP1 (0.6 Nm) 15 eShop eShop 19/32 69 80 25 50 56 16 0.5 WOEX 030204 10-... 239652 6IP1 (0.6 Nm) 16 eShop eShop – 72 83 25 50 56 17 0.5 WOEX 030204 10-... 239652 6IP1 (0.6 Nm) 17 eShop (eShop) – 75 86 25 50 56 18 0.5 WOEX 030204 10-... 239652 6IP1 (0.6 Nm) 17,5 eShop eShop 11/16 78 89 25 50 56 18.5 0.5 WOEX 030204 10-... 239652 6IP1 (0.6 Nm) 18 eShop eShop – 78 89 25 50 56 19 0.5 WOEX 030204 10-... 239652 6IP1 (0.6 Nm) 18,5 eShop (eShop) – 81 92 25 50 56 19.5 0.5 WOEX 030204 10-... 239652 6IP1 (0.6 Nm) 19 eShop eShop 3/4 81 92 25 50 56 20 0.5 WOEX 030204 10-... 239652 6IP1 (0.6 Nm) 19,5 eShop (eShop) – 84 95 25 50 56 20 0.25 WOEX 030204 10-... 239652 6IP1 (0.6 Nm) 20 eShop eShop – 84 95 25 50 56 21 0.5 WOEX 040304 18-... 239652 6IP2 (1.0 Nm) 21 eShop eShop – 87 98 25 50 56 22 0.5 WOEX 040304 18-... 239652 6IP2 (1.0 Nm) 22 eShop eShop – 90 101 25 50 56 23 0.5 WOEX 040304 18-... 239652 6IP2 (1.0 Nm) 22,5 eShop – – 93 – 25 – 56 23.5 0.5 WOEX 040304 18-... 239652 6IP2 (1.0 Nm) 23 eShop eShop 29/32 93 104 25 50 56 24 0.5 WOEX 040304 18-... 239652 6IP2 (1.0 Nm) 24 eShop eShop – 96 107 25 50 56 25 0.5 WOEX 040304 18-... 239652 6IP2 (1.0 Nm) 24,5 eShop eShop – 99 110 25 50 56 25.5 0.5 WOEX 040304 18-... 239652 6IP2 (1.0 Nm) 25 eShop eShop – 99 110 25 50 56 26 0.5 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 26 eShop eShop – 102 113 32 50 60 28 1 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 26,5 (eShop) eShop – 105 116 32 50 60 28.5 1 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 27 eShop (eShop) 1 1/16 105 116 32 50 60 30 1.5 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 28 eShop eShop – 108 119 32 50 60 31 1.5 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 29 eShop eShop – 111 122 32 50 60 32 1.5 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 29,5 eShop (eShop) – 114 125 32 50 60 32.5 1.5 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 30 eShop eShop – 119 130 32 50 60 32.5 1.25 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 31 (eShop) eShop 1 7/32 122 133 32 50 60 33.5 1.25 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 32 eShop eShop – 125 136 32 50 60 34 1 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 33 eShop eShop – 128 139 32 50 60 34 0.5 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 34 eShop eShop – 131 142 32 50 60 35 0.5 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 35 eShop eShop 1 3/8 134 145 32 50 60 36 0.5 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 36 eShop eShop – 137 148 32 50 60 37 0.5 WOEX 05T304 24-... 239652 8IP2 (1.3 Nm) 37 – (eShop) – – 161 – 50 – 40 1.5 WOEX 06T304 34-... 239652 10IP1 (2.8 Nm) 38 eShop eShop 1 1/12 153 164 32 50 60 41 1.5 WOEX 06T304 34-... 239652 10IP1 (2.8 Nm) 39 eShop eShop – 156 167 32 50 60 42 1.5 WOEX 06T304 34-... 239652 10IP1 (2.8 Nm) 39,5 – (eShop) – – 170 – 50 – 42.5 1.5 WOEX 06T304 34-... 239652 10IP1 (2.8 Nm) 40 eShop eShop – 159 170 32 50 60 43 1.5 WOEX 06T304 34-... 239652 10IP1 (2.8 Nm) 41 – eShop – – 173 – 50 – 44 1.5 WOEX 06T304 34-... 239652 10IP1 (2.8 Nm) 42 eShop eShop 1 21/32 165 176 32 50 60 45 1.5 WOEX 06T304 34-... 239652 10IP1 (2.8 Nm) 43 – eShop – – 179 – 50 – 45 1 WOEX 06T304 34-... 239652 10IP1 (2.8 Nm) 44 eShop eShop – 171 182 32 50 60 45 0.5 WOEX 06T304 34-... 239652 10IP1 (2.8 Nm) 180
