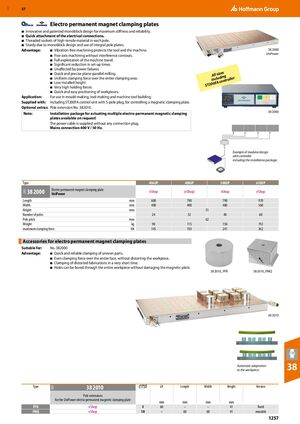

GBP 57 ​ Electro permanent magnet clamping plates ■ Innovative and patented monoblock design for maximum stiffness and reliability. ■ Quick attachment of the electrical connections. ■ Threaded sockets of high-tensile material in each pole. ■ Sturdy due to monoblock design and use of integral pole plates. Advantage: ■ Vibration-free machining protects the tool and the machine. 38 2000 UniPower ■ Five-axis machining without interference contours. ■ Full exploitation of the machine travel. ■ Significant reduction in set-up times. ■ Unaffected by power failures. es ■ Quick and precise plane-parallel milling. All siz ing ■ Uniform clamping force over the entire clamping area. c l u d ler in ntrol ■ Low installed height FA co ST200 ■ Very high holding forces ■ Quick and easy positioning of workpieces. Application: For use in mould-making, tool-making and machine tool building. Supplied with: Including ST200FA control unit with 5-pole plug, for controlling a magnetic clamping plate. Optional extras: Pole extension No. 382010. ​ 38 2000 Note: Installation package for actuating multiple electro-permanent magnetic clamping plates available on request! The power cable is supplied without any connection plug. Mains connection 400 V / 50 Hz. Example of modular design with controller including the installation package. Type 406UP 408UP 508UP 610UP Electro permanent magnet clamping plate 38 2000 38D eShop (eShop) eShop eShop UniPower Length mm 600 790 790 970 Width mm 400 400 480 560 Height mm 51 Number of poles 24 32 40 60 Pole pitch mm 62 Weight kg 90 115 150 192 maximum clamping force kN 145 193 241 362 Accessories for electro permanent magnet clamping plates ​ Suitable for: No. 382000 Advantage: ■ Quick and reliable clamping of uneven parts. ■ Even clamping force over the entire face, without distorting the workpiece. ■ Clamping of distorted fabrications in a very short time. ■ Holes can be bored through the entire workpiece without damaging the magnetic plate. 38 2010_PFR 38 2010_PMQ ​ 38 2010 Automatic adaptation to the workpiece. 38 Type 38 2010 ⌀ Length Width Height Version 38D Pole extensions for the UniPower electro permanent magnetic clamping plate mm mm mm mm ​ PFR eShop 3 60 – – 41 fixed PMQ eShop 10 – 60 60 41 movable 1257
