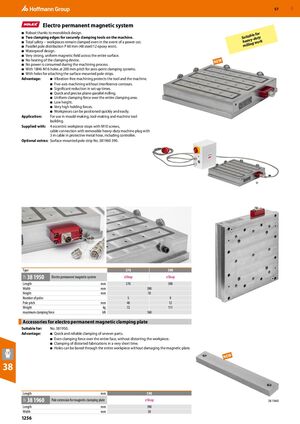

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1256

GBP 57 ​ Electro permanent magnetic system ■ Robust thanks to monoblock design. r ble fo ■ Two clamping edges for securely clamping tools on the machine. Suita y-duty ■ Total safety – workpieces remain clamped even in the event of a power cut. a v he g work ■ Parallel pole distribution P 60 mm (48 steel/12 epoxy resin). millin ■ Waterproof design. ■ Very strong, uniform magnetic field across the entire surface. ■ No heating of the clamping device. ■ No power is consumed during the machining process. NEW ■ With 18H6 M16 holes at 200 mm pitch for zero-point clamping systems. ■ With holes for attaching the surface-mounted pole strips. Advantage: ■ Vibration-free machining protects the tool and the machine. ■ Five-axis machining without interference contours. ■ Significant reduction in set-up times. ■ Quick and precise plane-parallel milling. ■ Uniform clamping force over the entire clamping area. ■ Low height. ■ Very high holding forces. ■ Workpieces can be positioned quickly and easily. Application: For use in mould-making, tool-making and machine tool building. Supplied with: 4 eccentric workpiece stops with M10 screws, cable connection with removable heavy-duty machine plug with 3 m cable in protective metal hose, including controller. Optional extras: Surface-mounted pole strip No. 381960 390. Type 370 590 38 1950 Electro permanent magnetic system eShop eShop 32F Length mm 370 590 Width mm 390 Height mm 70 Number of poles 5 9 Pole pitch mm 48 12 Weight kg 72 111 maximum clamping force kN 160 Accessories for electro permanent magnetic clamping plate ​ Suitable for: No. 381950. Advantage: ■ Quick and reliable clamping of uneven parts. ■ Even clamping force over the entire face, without distorting the workpiece. ■ Clamping of distorted fabrications in a very short time. ■ Holes can be bored through the entire workpiece without damaging the magnetic plate. NEW 38 Length mm 390 38 1960 Pole extension for magnetic clamping plate eShop 32F ​ 38 1960 Length mm 390 Width mm 50 1256
