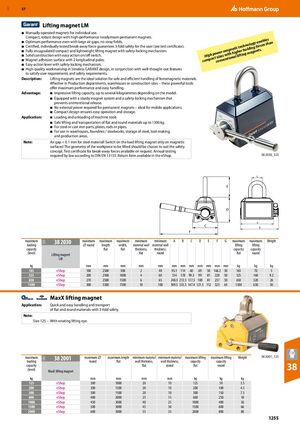

GBP 57 ​ Lifting magnet LM ■ Manually operated magnets for individual use. Compact, robust design with high-performance neodymium permanent magnets. les ■ Optimum performance even with large air gaps, no stray fields. enab n ■ Certified, individually tested break-away force guarantees 3-fold safety for the user (see test certificate). e c h n ologyforces tha e t i c t l d i n g n o . ■ Fully encapsulated compact and lightweight lifting magnet with safety-locking mechanism. r magh higher h magnets powe t g ■ Solid construction with easy action on/off switch. High ct sizes wi ional liftin a t ■ Magnet adhesion surface with 2 longitudinal poles. comp conven ■ Easy-action lever with safety-locking mechanism. ■ High-quality workmanship in timeless GARANT design, in conjunction with well-thought-out features to satisfy user requirements and safety requirements. Description: Lifting magnets are the ideal solution for safe and efficient handling of ferromagnetic materials. Whether in Production departments, warehouses or construction sites – these powerful tools offer maximum performance and easy handling. Advantage: ■ Impressive lifting capacity, up to several kilogrammes depending on the model. ■ Equipped with a sturdy magnet system and a safety-locking mechanism that prevents unintentional release. ■ No external power required for permanent magnets – ideal for mobile applications. ■ Compact design ensures easy operation and storage. Application: ■ Loading and unloading of machine tools ■ Safe lifting and transportation of flat and round materials up to 1300 kg. ■ For steel or cast iron parts, plates, rods or pipes. ■ For use in warehouses, foundries / steelworks, storage of steel, tool-making, and production areas. Note: Air gap < 0.1 mm for steel material! Switch on the load lifting magnet only on magnetic surfaces! The geometry of the workpiece to be lifted should be chosen to suit the safety concept. Test certificate for break-away forces available on request. Annual testing required by law according to DIN EN 13155. Return form available in the eShop. 38 2030_325 G E D A C B F maximum 38 2030 maximum maximum maximum minimum minimum A B C D E F G maximum maximum Weight 32D loading ⌀ round length width, material wall material wall lifting lifting capacity flat flat thickness, thickness, capacity capacity (level) Lifting magnet flat round flat round LM kg mm mm mm mm mm mm mm mm mm mm mm mm kg kg kg 165 eShop 100 2500 500 2 40 95.1 114 60 69 50 166.2 30 165 70 5 325 eShop 200 2500 1000 4 60 154 178 99.3 99 81 228 50 325 160 9.2 650 eShop 270 2500 1500 6 65 248.3 272.3 117.3 100 81 237 50 650 320 26 1300 eShop 300 3300 1500 10 100 309.5 333.5 147.4 121.5 112 323 64 1300 630 56 ​ MaxX lifting magnet Application: Quick and easy handling and transport of flat and round materials with 3-fold safety. Note: Size 125 – With rotating lifting eye. 38 2001_125 maximum 38 2001 maximum ⌀ maximum length minimum material minimum material maximum lifting maximum lifting Weight 38D loading round flat wall thickness, wall thickness, capacity capacity capacity (level) MaxX lifting magnet flat round flat round 38 kg mm mm mm mm kg kg kg 125 eShop 300 1000 20 10 125 50 3.5 200 eShop 300 1500 20 10 200 100 4.5 300 eShop 300 1500 20 10 300 150 7.5 600 eShop 400 2000 25 15 600 250 18 1000 eShop 450 3000 40 25 1000 400 36 1500 eShop 500 3000 45 30 1500 600 66 2000 eShop 600 3000 55 35 2000 800 80 1255
