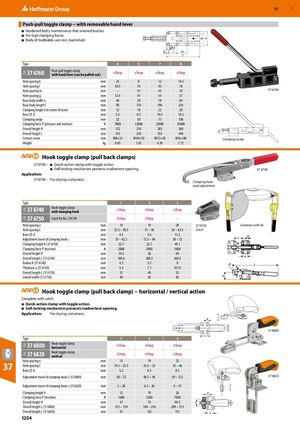

GBP 57 Push-pull toggle clamp − with removable hand lever ■ Hardened bolts, maintenance-free sintered bushes. ■ For high clamping forces. n g ■ Body of malleable cast iron, burnished. Ød k l m f Type 4 5 7 8 Push-pull toggle clamp 37 6760 eShop eShop eShop eShop 35A with hand lever (can be pulled-out) Hole spacing k mm 25 8 12 14.5 Hole spacing l mm 36.5 35 45 70 Hole spacing m mm – 41 45 70 ​37 6760 Hole spacing g mm 33.4 41 54 57 Base body width n mm 46 58 78 84 Base body length f mm 90 135 196 254 Clamping height b to centre of screw mm 12 18 22 28 Bore ⌀ d mm 5.5 8.5 10.3 10.3 Clamping range mm 32 50 75 106 Clamping force P (pressure and traction) N 7000 12000 25000 45000 Overall height H mm 132 210 285 360 h Overall length L mm 155 250 355 440 Contact screw mm M8×35 M10×50 M12×50 M16×80 Clamping stroke Weight kg 0.65 1.65 4.28 7.72 ​ Hook toggle clamp (pull back clamps) 37 6740 – ■ Quick-action clamp with toggle action. ■ Self-locking mechanism prevents inadvertent opening. 37 6740 Application: 37 6740 – For closing containers. Clamping hook axial adjustment. Type 1 3 5 Hook toggle clamp 37 6740 eShop eShop eShop 35A with clamping hook 37 6750 Catch for No. 376740 eShop eShop – 35A Hole spacing e mm 19 19 29 37 6750 Container with lid Hole spacing f mm 25.5 – 30.5 31 – 36 56 – 63.5 Catch Bore ⌀ d mm 4.5 5.6 11.2 d Adjustment travel of clamping hook c mm 35 – 42.5 72.5 – 84 58 – 72 c Clamping height h (37 6740) mm 22.7 22.7 49.1 Clamping force P (traction) N 2000 3000 5000 f Overall height H mm 34.5 36 69 e Overall length L (37 6740) mm 104.6 200.5 260.5 Radius R (37 6740) mm 4.5 5.5 8 L a R Thickness a (37 6740) mm 5.3 7.1 10.75 Overall length L (37 6750) mm 31 40 55 overall width (37 6750) mm 40 45 85 h PH ​ Hook toggle clamp (pull back clamp) − horizontal / vertical action Complete with catch. ■ Quick-action clamp with toggle action. ■ Self-locking mechanism prevents inadvertent opening. Application: For closing containers. 37 6800​ Type 2 3 4 Hook toggle clamp 37 6800 eShop eShop eShop 35A horizontal Hook toggle clamp 37 6820 eShop eShop eShop 35A vertical Hole spacing e mm 13 19 32 37 Hole spacing f Bore ⌀ d mm mm 19.5 – 23.5 5.2 24.5 – 32 6.5 35 – 46 8.5 Adjustment travel of clamping hook c (37 6800) mm 38 – 72 48.5 – 96 59 – 123 37 6820​ Adjustment travel of clamping hook c (37 6820) mm 5 – 28 6.5 – 36 9 – 47 Clamping height h mm 12 19 26 Clamping force P (traction) N 1600 3200 7000 Overall height H mm 47 70 94.5 Overall length L (37 6800) mm 125 – 159 169 – 216 209 – 273 Overall length L (37 6820) mm 91 125 151 1254
