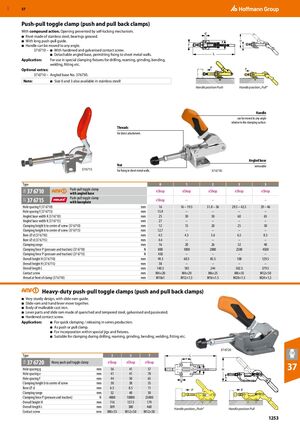

GBP 57 ​Push-pull toggle clamp (push and pull back clamps) With compound action. Opening prevented by self-locking mechanism. d ■ Rivet made of stainless steel, bearings greased. ■ With long push-pull guide. K H ■ Handle can be moved to any angle. f h 37 6710 – ■ With hardened and galvanised contact screw. ■ Detachable angled base, permitting fixing to sheet metal walls. L Application: For use in special clamping fixtures for drilling, reaming, grinding, bending, welding, fitting etc. P Optional extras: P 37 6710 – Angled base No. 376730. Note: ■ Size 0 and 3 also available in stainless steel! Handle position Push Handle position „Pull“ Handle can be moved to any angle relative to the clamping surface. Threads for direct attachment. Angled base Nut removable 37 6715​ for fixing to sheet metal walls. 37 6710​ Type 0 1 2 3 5 Push-pull toggle clamp 37 6710 eShop eShop eShop eShop eShop 35A with angled base Push-pull toggle clamp 37 6715 eShop – – – – 32S with baseplate Hole spacing f (37 6710) mm 16 16 – 19.5 31.8 – 36 29.5 – 42.5 29 – 46 Hole spacing f (37 6715) mm 15.9 – – – – Angled base width K (37 6710) mm 25 30 50 60 65 Angled base width K (37 6715) mm 27 – – – – Clamping height b to centre of screw (37 6710) mm 12 15 20 25 30 Clamping height b to centre of screw (37 6715) mm 12.7 – – – – Bore ⌀ d (37 6710) mm 4.5 4.5 5.6 6.5 8.5 Bore ⌀ d (37 6715) mm 4.4 – – – – Clamping range mm 16 20 26 32 40 Clamping force P (pressure and traction) (37 6710) N 800 1000 2000 2500 4500 Clamping force P (pressure and traction) (37 6715) N 450 – – – – Overall height H (37 6710) mm 49.3 60.5 85.5 108 129.5 Overall height H (37 6715) mm 38 – – – – Overall length L mm 140.5 185 244 302.5 379.5 Contact screw mm M4×20 M4×20 M6×25 M8×35 M12×50 thread at front of clamp (37 6710) mm M10x1 M12×1,5 M16×1.5 M20×1.5 M24×1,5 ​ Heavy-duty push-pull toggle clamps (push and pull back clamps) ■ Very sturdy design, with slide-ram guide. ■ Slide-ram and hand lever move together. ■ Body of malleable cast iron. ■ Lever parts and slide ram made of quenched and tempered steel, galvanised and passivated. ■ Hardened contact screw. Application: ■ For quick clamping / releasing in series production. ■ As push or pull clamp. ■ For incorporation within special jigs and fixtures. ■ Suitable for clamping during drilling, reaming, grinding, bending, welding, fitting etc. 37 6720 Type 3 5 7 L e 37 6720 Heavy push-pull toggle clamp eShop eShop eShop 35A Hole spacing g Hole spacing e mm mm 36 41 41 41 57 70 g f H 37 Hole spacing f mm 44 50 65 h d Clamping height b to centre of screw mm 30 38 55 Bore ⌀ d mm 6.5 8.5 11 P P Clamping range mm 32 40 50 Clamping force P (pressure and traction) N 4000 10000 25000 Overall height H mm 116 137.5 179 Overall length L mm 309 380 460 Handle position „Push“ Handle position Pull Contact screw mm M8×35 M12×50 M12×50 1253
