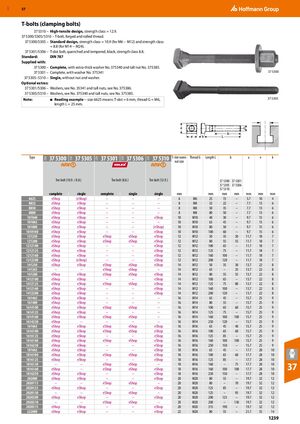

GBP 57 ​T-bolts (clamping bolts) 37 5310 – High-tensile design, strength class = 12.9. 37 5300/5305/5310 – T-bolt, forged and rolled thread. 37 5300/5305 – Standard design, strength class = 10.9 (for M6 − M12) and strength class = 8.8 (for M14 − M24). 37 5301/5306 – T-slot bolt, quenched and tempered, black, strength class 8.8. Standard: DIN 787 Supplied with: 37 5300 – Complete, with extra-thick washer No. 375340 and tall nut No. 375385. 37 5301 – Complete, with washer No. 375341 37 5300 37 5305–5310 – Single, without nut and washer. Optional extras: 37 5301/5306 – Washers, see No. 35341 and tall nuts, see No. 375386. 37 5305/5310 – Washers, see No. 375340 and tall nuts, see No. 375385. Note: Reading example − size 6625 means: T-slot = 6 mm, thread G = M6, ■  37 5305 length L = 25 mm. ​ Type 37 5300 37 5305 37 5301 37 5306 37 5310 T-slot nomi- Thread G Length L b a e k 32H 32H 35A 35A 35A nal size Tee bolt (10.9. / 8.8.) Tee bolt (8.8.) Tee bolt (12.9.) ​ ​ ​ 37 5300 37 5301 ​ ​ ​ 37 5305 37 5306 37 5310 complete single complete single single mm ​ mm mm mm mm mm mm 6625 eShop (eShop) – – – 6 M6 25 15 – 5.7 10 4 8832 eShop eShop – – – 8 M8 32 22 – 7.7 13 6 8850 eShop eShop – – – 8 M8 50 35 – 7.7 13 6 8880 eShop eShop – – – 8 M8 80 50 – 7.7 13 6 101040 eShop eShop – – eShop 10 M10 40 30 – 9.7 15 6 101063 eShop eShop – – – 10 M10 63 45 – 9.7 15 6 101080 eShop eShop – – (eShop) 10 M10 80 50 – 9.7 15 6 1010100 eShop eShop – – eShop 10 M10 100 60 – 9.7 15 6 121250 eShop eShop eShop eShop eShop 12 M12 50 35 30 11.7 18 7 121280 eShop eShop eShop eShop eShop 12 M12 80 55 55 11.7 18 7 1212100 eShop eShop – – eShop 12 M12 100 65 – 11.7 18 7 1212125 eShop eShop – – eShop 12 M12 125 75 – 11.7 18 7 1212160 eShop eShop – – eShop 12 M12 160 100 – 11.7 18 7 1212200 eShop (eShop) – – eShop 12 M12 200 120 – 11.7 18 7 141250 eShop eShop eShop eShop eShop 14 M12 50 35 38 13.7 22 8 141263 – – eShop eShop – 14 M12 63 – 35 13.7 22 8 141280 eShop eShop eShop eShop eShop 14 M12 80 55 55 13.7 22 8 1412100 eShop eShop – – eShop 14 M12 100 65 – 13.7 22 8 1412125 eShop eShop eShop eShop eShop 14 M12 125 75 80 13.7 22 8 1412160 eShop eShop – – eShop 14 M12 160 100 – 13.7 22 8 1412200 eShop eShop – – eShop 14 M12 200 120 – 13.7 22 8 161463 eShop eShop – – – 16 M14 63 45 – 15.7 25 9 161480 eShop eShop – – – 16 M14 80 55 – 15.7 25 9 1614100 eShop eShop eShop eShop – 16 M14 100 65 60 15.7 25 9 1614125 eShop eShop – – – 16 M14 125 75 – 15.7 25 9 1614160 eShop eShop eShop eShop – 16 M14 160 100 100 15.7 25 9 1614250 eShop – – – – 16 M14 250 120 – 15.7 25 9 161663 eShop eShop eShop eShop eShop 16 M16 63 45 40 15.7 25 9 1616100 eShop eShop eShop eShop eShop 16 M16 100 65 60 15.7 25 9 1616125 eShop eShop – – eShop 16 M16 125 85 – 15.7 25 9 1616160 eShop eShop eShop eShop eShop 16 M16 160 100 100 15.7 25 9 1616250 eShop eShop – – eShop 16 M16 250 150 – 15.7 25 9 181663 eShop eShop – – eShop 18 M16 63 45 – 17.7 28 10 1816100 eShop eShop eShop eShop eShop 18 M16 100 65 60 17.7 28 10 1816125 eShop eShop – – eShop 18 M16 125 85 – 17.7 28 10 1816130 1816160 1816250 – eShop eShop – – eShop eShop eShop – eShop eShop – – eShop eShop 18 18 18 M16 M16 M16 160 160 250 – 100 150 75 100 – 17.7 17.7 17.7 28 28 28 10 10 10 37 202080 eShop eShop – – eShop 20 M20 80 55 – 19.7 32 12 2020115 – – eShop eShop – 20 M20 80 – 70 19.7 32 12 2020125 eShop eShop – – eShop 20 M20 125 85 – 19.7 32 12 2020150 – – eShop eShop – 20 M20 125 – 95 19.7 32 12 2020200 eShop eShop – – eShop 20 M20 200 125 – 19.7 32 12 2020210 – – eShop eShop – 20 M20 200 – 130 19.7 32 12 2020315 eShop eShop – – eShop 20 M20 315 190 – 19.7 32 12 222080 eShop eShop – – eShop 22 M20 80 55 – 21.7 35 14 1239
