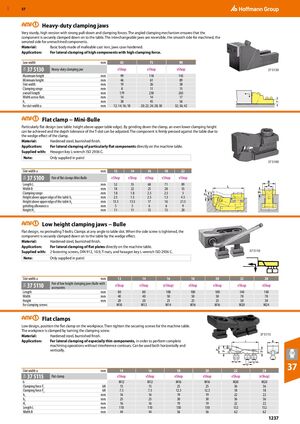

GBP 57 ​ Heavy-duty clamping jaws Very sturdy, high version with strong pull-down and clamping forces. The angled clamping mechanism ensures that the component is securely clamped down on to the table. The interchangeable jaws are reversible, the smooth side for machined, the serrated side for unmachined components. Material: Basic body made of malleable cast iron, jaws case-hardened. Application: For lateral clamping of high components with high clamping force. Jaw width mm 65 75 90 37 5130 Heavy-duty clamping jaw eShop eShop eShop 35A 37 5130​ Maximum height mm 99 118 145 Minimum height mm 46 61 89 Slot width mm 19 26 38 Clamping range mm 8 11 15 overall length mm 179 230 265 Width across flats mm 14 14 17 h1 mm 38 45 56 h1 for slot width a mm 12; 14; 16; 18 20; 22; 24; 28; 30 32; 36; 42 ​ Flat clamp − Mini-Bulle Particularly flat design (see table: height above upper table edge). By grinding down the clamp, an even lower clamping height can be achieved and the depth tolerance of the T-slot can be adjusted. The component is firmly pressed against the table due to the wedge effect of the clamp. Material: Hardened steel, burnished finish. Application: For lateral clamping of particularly flat components directly on the machine table. Supplied with: Hexagon key L-wrench ISO 2936 C. Note: Only supplied in pairs! ​37 5100 Slot width a mm 12 14 16 18 22 37 5100 Pair of flat clamps Mini-Bulle eShop eShop eShop eShop eShop 35A Length L mm 52 55 68 71 89 Width B mm 18 22 25 28 35 Clamping range mm 1.8 1.8 2.5 2.5 3 Height above upper edge of the table h1 mm 2.5 1.5 2.5 1.5 4.5 Height above upper edge of the table h2 mm 13.5 13.5 17 16 21.5 grinding allowance x mm 5 5 6 6 9 Height H1 mm 11 11 15 15 20 ​ Low height clamping jaws − Bulle Flat design, no protruding T-bolts. Clamps at any angle to table slot. When the side screw is tightened, the component is securely clamped down on to the table by the wedge effect. Material: Hardened steel, burnished finish. Application: For lateral clamping of flat plates directly on the machine table. Supplied with: 2 fastening screws, DIN 912, 10.9, T-nuts, and hexagon key L-wrench ISO 2936 C. 37 5110​ Note: Only supplied in pairs! Slot width a mm 12 14 16 18 20 22 28 Pair of low height clamping jaws Bulle with 37 5110 eShop eShop (eShop) eShop eShop eShop eShop 35A accessories Length mm 80 80 100 100 100 140 140 Width mm 40 40 50 50 50 78 78 Height mm 20 20 25 25 25 30 30 for clamping screws M10 M12 M14 M16 M16 M20 M24 ​ Flat clamps Low design, position the flat clamp on the workpiece. Then tighten the securing screws for the machine table. The workpiece is clamped by turning the clamping screw. Material: Hardened steel, burnished finish. 37 5115​ Application: For lateral clamping of especially thin components, in order to perform complete machining operations without interference contours. Can be used both horizontally and vertically. Slot width a mm 14 16 18 20 22 28 37 37 5115 Flat clamp eShop eShop eShop eShop eShop (eShop) 35A G M12 M12 M16 M16 M20 M20 Clamping force F1 kN 15 15 25 25 36 36 Clamping force F2 kN 7.5 7.5 12.5 12.5 18 18 h1 mm 16 16 19 19 22 22 h2 mm 25 25 30 30 36 36 H1 mm 16 16 19 19 22 22 Length L mm 110 110 130 130 152 152 Width B mm 44 44 56 56 62 62 1237
