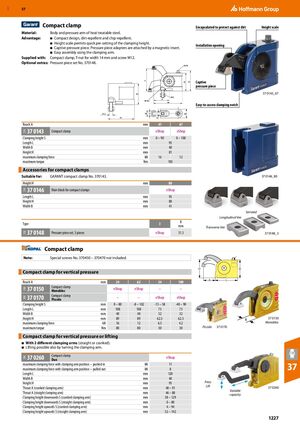

GBP 57 ​ Compact clamp Encapsulated to protect against dirt Height scale Material: Body and pressure arm of heat treatable steel. Advantage: ■ Compact design, dirt-repellent and chip-repellent. ■ Height scale permits quick pre-setting of the clamping height. Installation opening ■ Captive pressure piece. Pressure piece adapters are attached by a magnetic insert. ■ Easy assembly using the clamping arm. Supplied with: Compact clamp, T-nut for width 14 mm and screw M12. Optional extras: Pressure piece set No. 370148. Captive pressure piece 80 ​ 37 0143_67 Easy-to-access clamping notch M12 99 Reach A mm 47 67 37 0143 Compact clamp eShop eShop 31K Clamping height S mm 0 – 90 0 – 100 Length L mm 95 Width B mm 40 Height H mm 81 maximum clamping force kN 16 12 maximum torque Nm 105 Accessories for compact clamps ​ Suitable for: GARANT compact clamp No. 370143. 37 0146_80 Height H mm 80 37 0146 Riser block for compact clamps eShop 31K Length L mm 95 Height H mm 80 Width B mm 41 Serrated Longitudinal Vee B Type 3 mm Transverse Vee 37 0148 Pressure piece set, 3 pieces eShop 31.5 31K 37 0148_3 ​ Compact clamp Note: Special screws No. 370450 – 370470 not included. H S Compact clamp for vertical pressure ​ A L Reach A mm 34 62 54 100 Compact clamp 37 0150 eShop eShop – – 39K Monobloc Compact clamp 37 0170 – – eShop eShop 39K Piccolo Clamping height S mm 0 – 80 -8 – 102 -15 – 58 -40 – 90 Length L mm 108 108 73 73 Width B mm 40 40 32 32 Height H mm 89 89 62.5 62.5 B 37 0150 maximum clamping force kN 16 12 6.5 4.2 Monobloc maximum torque Nm 80 80 30 30 Piccolo 37 0170 Compact clamp for vertical pressure or lifting ​ ■ With 2 different clamping arms (straight or cranked). ■ Lifting possible also by turning the clamping arm. Compact clamp 37 0260 eShop 39K Duo maximum clamping force with clamping arm position − pushed in maximum clamping force with clamping arm position − pulled out Length L kN kN mm 11 8 120 37 Width B mm 40 Height H mm 95 Press Lift 37 0260 Throat A (cranked clamping arm) mm 48 – 91 Variable ​ Throat A (straight clamping arm) mm 46 – 88 capacity Clamping height downwards S (cranked clamping arm) mm 38 – 129 Clamping height downwards S (straight clamping arm) mm 0 – 80 Clamping height upwards S (cranked clamping arm) mm 4 – 94 Clamping height upwards S (straight clamping arm) mm 52 – 142 1227
