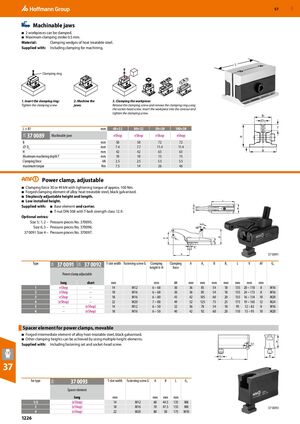

GBP 57 ​ Machinable jaws ■ 2 workpieces can be clamped. ■ Maximum clamping stroke 0.5 mm. Material: Clamping wedges of heat treatable steel. Supplied with: Including clamping for machining. L Clamping ring 1. Insert the clamping ring: 2. Machine the 3. Clamping the workpiece: Tighten the clamping screw jaws: Release the clamping screw and remove the clamping ring using the socket-head screw. Insert the workpiece into the contour and tighten the clamping screw. B1 D2 L × B1 mm 40×32 80×32 50×50 100×50 T 37 0089 Machinable jaws eShop eShop eShop eShop 37K H B mm 50 50 72 72 ⌀ D2 mm 7.4 7.7 11.4 11.4 H mm 42 42 63 63 B Maximum machining depth T mm 10 10 15 15 Clamping force kN 2.5 2.5 5.5 5.5 maximum torque Nm 7.5 14 26 46 ​ Power clamp, adjustable ■ Clamping force 30 or 49 kN with tightening torque of approx. 100 Nm. ■ Forged clamping element of alloy heat-treatable steel, black galvanised. ■ Steplessly adjustable height and length. ■ Low installed height. L Supplied with: ■ Base element and carrier. B1 B ■ T-nut DIN 508 with T-bolt strength class 12.9. Optional extras: Size 5; 1; 2 – Pressure pieces No. 370095. Size 6; 3 – Pressure pieces No. 370096. 37 0091 Size 4 – Pressure pieces No. 370097. ​ 37 0091 Type 37 0091 37 0092 T-slot width Fastening screw G Clamping Clamping A A1 B B1 L V AF G1 35A 35A height h-H force Power clamp adjustable long short mm ​ mm kN mm mm mm mm mm mm mm ​ 1 eShop – 14 M12 6 – 68 30 36 85 54 18 135 20 – 110 8 M16 2 eShop – 18 M16 6 – 68 30 36 85 54 18 135 24 – 113 8 M16 3 eShop – 18 M16 6 – 80 43 42 105 60 20 155 16 – 134 10 M20 4 (eShop) – 22 M20 7 – 88 49 52 125 75 25 175 19 – 165 12 M24 5 – (eShop) 14 M12 6 – 50 32 36 78 54 18 95 12 – 82 8 M16 6 – (eShop) 18 M16 6 – 50 40 42 92 60 20 110 15 – 95 10 M20 Spacer element for power clamps, movable ​ ■ Forged intermediate element of alloy heat-treatable steel, black galvanised. ■ Other clamping heights can be achieved by using multiple height elements. A Supplied with: Including fastening set and socket-head screw. G1 G B L 37 for type 37 0093 T-slot width Fastening screw G A B L G1 35A Spacer element long mm ​ mm mm mm ​ 1/2 (eShop) 14 M12 60 44.5 135 M8 3 (eShop) 18 M16 70 47.5 155 M8 37 0093 4 (eShop) 22 M20 80 58 175 M10 1226
