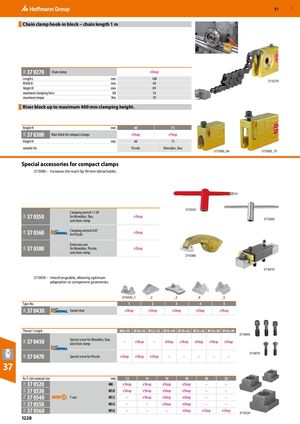

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1228

GBP 57 Chain clamp hook-in block − chain length 1 m 37 0270 Chain clamp eShop 39K Length L mm 108 37 0270 Width B mm 40 Height H mm 89 maximum clamping force kN 16 maximum torque Nm 70 Riser block up to maximum 400 mm clamping height. ​ Height H mm 60 75 37 0300 Riser block for compact clamps eShop eShop 39K Height H mm 60 75 suitable for Piccolo Monobloc, Duo 37 0300_60 37 0300_75 ​Special accessories for compact clamps 37 0380 – Increases the reach by 99 mm (detachable). 37 0350​ Clamping wrench 11 AF 37 0350 for Monobloc, Duo, eShop 39K and chain clamp 37 0360​ Clamping wrench 8 AF 37 0360 eShop 39K for Piccolo Extension arm 37 0380 for Monobloc, Piccolo, eShop 39K and chain clamp 37 0380​ ​37 0410 37 0430 – Interchangeable, allowing optimum adaptation to component geometries. 37 0430_1 _2 _3 _4 _5 Type-No. 1 2 3 4 5 37 0430 Swivel shoe eShop eShop eShop eShop eShop 39K Thread / Length M8×30 M10×35 M12×35 M10×40 M10×45 M12×36 M14×40 M16×40 ​37 0450 Special screw for Monobloc, Duo, 37 0450 – eShop – eShop eShop eShop eShop eShop 39K and chain clamp 37 0470​ 37 0470 Special screw for Piccolo eShop eShop eShop – – – – – 39K 37 for T-slot nominal size mm 12 14 16 18 20 22 37 0520 M8 eShop eShop eShop eShop – – 35A 35A 35A 35A 35A 37 0530 M10 eShop eShop eShop eShop – – 37 0540 T-nut M12 – eShop eShop eShop – – 37 0550 M14 – – eShop eShop – – 37 0560 M16 – – – eShop eShop eShop 37 0520​ 1228
