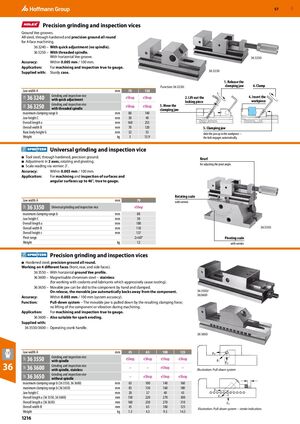

GBP 57 ​ Precision grinding and inspection vices Ground Vee grooves. All-steel, through hardened and precision ground all round for 4-face machining. 36 3240 – With quick adjustment (no spindle). 36 3250 – With threaded spindle. With horizontal Vee groove. 36 3250​ Accuracy: Within 0.005 mm / 100 mm. Application: For machining and inspection true to gauge. Supplied with: Sturdy case. 36 3230​ 1. Release the Function 36 3230: clamping jaw 6. Clamp Jaw width A mm 70 120 Grinding and inspection vice 36 3240 eShop eShop 2. Lift out the 4. Insert the 32K with quick adjustment workpiece locking piece Grinding and inspection vice 36 3250 eShop eShop 3. Move the 32K with threaded spindle clamping jaw maximum clamping range b mm 80 140 Jaw height C mm 30 40 Overall length a mm 160 255 Overall width B mm 70 120 5. Clamping jaw Base body height G mm 32 55 slide the jaw up to the workpiece − Weight kg 3 13.9 the lock engages automatically. ​ Universal grinding and inspection vice ■ Tool steel, through hardened, precision ground. Knurl ■ Adjustment in 2 axes, rotating and pivoting. for adjusting the pivot angle. ■ Scale reading via vernier: 3′. Accuracy: Within 0.003 mm / 100 mm. Application: For machining and inspection of surfaces and angular surfaces up to 46°, true to gauge. Rotating scale Jaw width A mm 70 with vernier. 36 3350 Universal grinding and inspection vice eShop 38F maximum clamping range b mm 80 Jaw height C mm 30 Overall length a mm 180 Overall width B mm 110 36 3350 Overall height c mm 137 Pivot range 2×60° Pivoting scale Weight kg 12 with vernier. ​ Precision grinding and inspection vices ■ Hardened steel; precision ground all round. Working on 4 different faces (front, rear, and side faces). 36 3550 – With horizontal ground Vee profile. 36 3600 – Magnetisable chromium steel − stainless (for working with coolants and lubricants which aggressively cause rusting). 36 3650 – Movable jaw can be slid to the component by hand and clamped. On release, the movable jaw automatically backs away from the component. 36 3550/ 363600 Accuracy: Within 0.003 mm / 100 mm (system accuracy). Function: Pull-down system − The movable jaw is pulled down by the resulting clamping force; no lifting of the component or vibration during machining. Application: For machining and inspection true to gauge. 36 3600 – Also suitable for spark eroding. Supplied with: 36 3550/3600 – Operating crank handle. ​36 3650 Jaw width A mm 45 65 100 125 Fx Grinding and inspection vice 36 3550 eShop eShop eShop eShop 38F with spindle Fr Fy 36 36 3600 Grinding and inspection vice – – eShop – 38F with spindle, stainless Illustration: Pull-down system Grinding and inspection vice 36 3650 ​– eShop eShop eShop 38F without spindle maximum clamping range b (36 3550, 36 3600) mm 65 100 140 160 maximum clamping range b (36 3650) mm 85 130 160 180 Fx Jaw height C mm 20 37 40 43 Overall length a (36 3550, 36 3600) mm 150 220 270 300 Fr Overall length a (36 3650) mm 160 230 270 310 Fy Overall width B mm 45 65 100 125 Illustration: Pull-down system − stroke indication. Weight kg 1.3 4.3 9.5 14.5 1216
