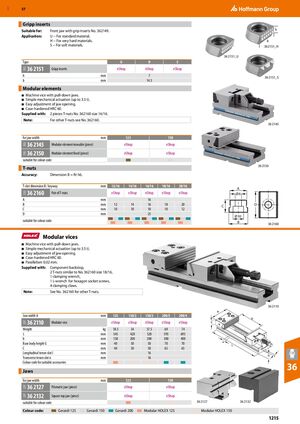

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1215

GBP 57 Gripp inserts ​ Suitable for: Front jaw with grip inserts No. 362149. h Application: U − For standard material. H − For very hard materials. b S − For soft materials. 36 2151_H 36 2151_U Type U H S 36 2151 35G Gripp inserts eShop eShop eShop h mm 7 36 2151_S b mm 14.5 Modular elements ​ ■ Machine vice with pull-down jaws. ■ Simple mechanical actuation (up to 3.5 t). ■ Easy adjustment of jaw opening. ■ Case-hardened HRC 60. Supplied with: 2 pieces T-nuts No. 362160 size 16/16. Note: For other T-nuts see No. 362160. 36 2145 ​ for jaw width mm 125 150 36 2145 35G Modular element movable (piece) eShop eShop 36 2150 35G Modular element fixed (piece) eShop eShop suitable for colour code ​ ​ 36 2150 T-nuts ​ Accuracy: Dimension B = fit h6. T-slot dimension B / keyway mm 12/16 14/16 16/16 18/16 20/16 A 36 2160 35G Pair of T-nuts eShop eShop eShop eShop eShop Ø6 A mm 16 B mm 12 14 16 18 20 C D C mm 10 10 10 10 12 D mm 25 Ø10 ​ ​ ​ ​​ ​ ​ ​​ ​ ​ ​​ ​ ​ ​​ ​ ​ ​ suitable for colour code B ​ ​ ​ ​ ​ 36 2160 ​ Modular vices ■ Machine vice with pull-down jaws. ■ Simple mechanical actuation (up to 3.5 t). ■ Easy adjustment of jaw opening. ■ Case-hardened HRC 60. ■ Parallelism 0.02 mm. Supplied with: Component backstop, 2 T-nuts similar to No. 362160 size 18/16, 1 clamping wrench, 1 L-wrench for hexagon socket screws, 4 clamping claws. Note: See No. 362160 for other T-nuts. 36 2110 Jaw width A mm 125 150/2 150/3 200/3 200/4 36 2110 Modular vice eShop eShop eShop eShop eShop 32P Weight kg 18.5 34 37.5 69 74 L mm 345 420 520 595 695 b mm 150 200 300 300 400 Base body height G mm 40 50 50 70 70 C mm 40 50 50 65 65 Longitudinal tenon slot l mm 16 Transverse tenon slot n mm 16 Colour code for suitable accessories ​ ​ ​ ​ ​ Jaws ​ 36 for jaw width mm 125 150 36 2127 Prismatic jaw (piece) eShop eShop 32P 36 2132 Square top jaw (piece) eShop eShop 32P suitable for colour code ​ ​ 36 2127 36 2132 Colour code: Gerardi 125 Gerardi 150 Gerardi 200 Modular HOLEX 125 Modular HOLEX 150 1215
