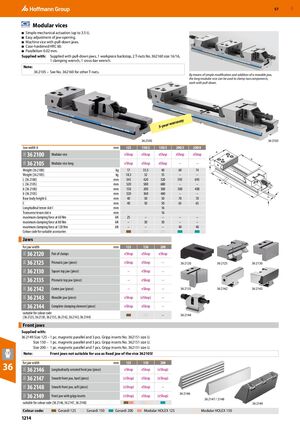

GBP 57 ​ Modular vices ■ Simple mechanical actuation (up to 3.5 t). ■ Easy adjustment of jaw opening. ■ Machine vice with pull-down jaws. ■ Case-hardened HRC 60. ■ Parallelism 0.02 mm. Supplied with: Supplied with pull-down jaws, 1 workpiece backstop, 2 T-nuts No. 362160 size 16/16, 1 clamping wrench, 1 cross-bar wrench. Note: 36 2105 – See No. 362160 for other T-nuts. By means of simple modification and addition of a movable jaw, the long modular vice can be used to clamp two components, each with pull-down. ran ty r war 5-yea 36 2100 36 2105 Jaw width A mm 125 150/2 150/3 200/3 200/4 A 36 2100 35G Modular vice eShop eShop eShop eShop eShop b 36 2105 35G Modular vice long eShop eShop eShop – – C Weight (36 2100) kg 17 35.5 40 69 74 Weight (36 2105) kg 18.3 32 35 – – L (36 2100) mm 345 420 520 595 695 n L (36 2105) mm 520 580 680 – – L b (36 2100) mm 150 200 300 300 400 b (36 2105) mm 320 360 460 – – G l Base body height G mm 40 50 50 70 70 C mm 40 50 50 65 65 Longitudinal tenon slot l mm 16 Transverse tenon slot n mm 16 maximum clamping force at 60 Nm kN 25 – – – – maximum clamping force at 80 Nm kN – 30 30 – – maximum clamping force at 120 Nm kN – – – 40 40 Colour code for suitable accessories ​ ​ ​ ​ ​ Jaws ​ for jaw width mm 125 150 200 36 2120 35G Pair of clamps eShop eShop eShop 36 2125 35G Prismatic jaw (piece) eShop eShop – 36 2120 36 2125 36 2130 36 2130 35G Square top jaw (piece) – eShop – 36 2135 35G Prismatic top jaw (piece) – eShop – 36 2142 35G Centre jaw (piece) – eShop – 36 2135 36 2142 36 2143 36 2143 35G Movable jaw (piece) eShop (eShop) – 36 2144 35G Complete clamping element (piece) eShop eShop – suitable for colour code ​ ​ – 36 2144 (36 2125, 36 2130, 36 2135, 36 2142, 36 2143, 36 2144) Front jaws ​ Supplied with: 36 2149 Size 125 – 1 pc. magnetic parallel and 3 pcs. Gripp inserts No. 362151 size U. Size 150 – 1 pc. magnetic parallel and 5 pcs. Gripp inserts No. 362151 size U. Size 200 – 1 pc. magnetic parallel and 7 pcs. Gripp inserts No. 362151 size U. Note: Front jaws not suitable for use as fixed jaw of the vice 362105! for jaw width mm 125 150 200 36 36 2146 35G Longitudinally serrated front jaw (piece) eShop eShop (eShop) 36 2147 35G Smooth front jaw, hard (piece) (eShop) eShop (eShop) 36 2148 35G Smooth front jaw, soft (piece) (eShop) eShop – 36 2146 36 2149 35G Front jaw with gripp inserts (eShop) eShop (eShop) 36 2147 / 2148 suitable for colour code (36 2146, 36 2147, 36 2148) ​ ​ ​ ​ ​ 36 2149 Colour code: Gerardi 125 Gerardi 150 Gerardi 200 Modular HOLEX 125 Modular HOLEX 150 1214
