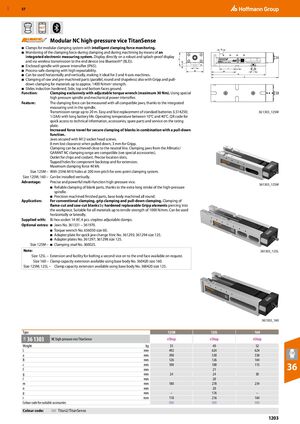

GBP 57 Modular NC high-pressure vice TitanSense ■ Clamps for modular clamping system with intelligent clamping force monitoring. ■ Monitoring of the clamping force during clamping and during machining by means of an integrated electronic measuring system. Display directly on a robust and splash-proof display and via wireless transmission to the end device (via Bluetooth® (BLE)). ■ Enclosed spindle with power intensifier (IP65). ■ Process-safe clamping with high repeatability. m s ■ Can be used horizontally and vertically, making it ideal for 3 and 4-axis machines. ■ Clamping of raw and pre-machined parts (parallel, round and shapeless) also with Gripp and pull- down clamping for materials up to approx. 1400 N/mm2 strength. ■ Slides induction hardened. Side, top and bottom faces ground. Function: Clamping exclusively with adjustable torque wrench (maximum 30 Nm). Using special high pressure spindle and mechanical power intensifier. Feature: The clamping force can be measured with all compatible jaws, thanks to the integrated measuring unit in the spindle. Transmission range up to 20 m. Easy and fast replacement of standard batteries (LS14250; 36 1303_125M 1/2AA) with long battery life. Operating temperature between 10°C and 40°C. QR code for quick access to technical information, accessories, spare parts and service on the rating plate. Increased force travel for secure clamping of blanks in combination with a pull-down function. Jaws secured with M12 socket head screws. 8 mm lost clearance when pulled down, 3 mm for Gripp. Clamping can be achieved close to the neutral line. Clamping jaws from the Allmatic/ GARANT NC clamping range are compatible (see special accessories). Outlet for chips and coolant. Precise location slots. Tapped holes for component backstop and for extension. Maximum clamping force 40 kN. Size 125M – With 25H6 M10 holes at 200 mm pitch for zero-point clamping system. Size 125M; 160 – Can be installed vertically. Advantage: Precise and powerful multi-function high-pressure vice. 361303_125M ■ Reliable clamping of blank parts, thanks to the extra long stroke of the high-pressure spindle. ■ Precision machined finished parts, base body machined all round. Application: For conventional clamping, grip clamping and pull-down clamping. Clamping of flame-cut and saw-cut blanks by hardened replaceable Gripp elements piercing into the workpiece. Suitable for all materials up to tensile strength of 1000 N/mm. Can be used horizontally or laterally. Supplied with: Bi-hex socket 14 AF, 4 pcs. stepless adjustable clamps. Optional extras: ■ Jaws No. 361331 – 361970. ■ Torque wrench No. 656050 size 60. ■ Adapter plate for quick jaw change Xtric No. 361293; 361294 size 125. ■ Adapter plates No. 361297; 361298 size 125. Size 125M – ■ Clamping stud No. 360025. Note: 361303_125L Size 125L – Extension and facility for bolting a second vice on to the end face available on request. Size 160 – Clamp capacity extension available using base body No. 360420 size 160. Size 125M; 125L – Clamp capacity extension available using base body No. 360420 size 125. 361303_160 Type 125M 125L 160 36 1303 34A NC high-pressure vice TitanSense eShop eShop eShop Weight kg 35 40 52 L mm 492 624 624 a mm 398 530 530 B mm 126 126 164 c f mm mm 100 100 21 115 36 g mm 24 24 30 l mm 20 m mm 180 278 234 n mm 20 p mm – 176 – r mm 118 216 164 Colour code for suitable accessories ​ ​ ​ Colour code: Titan2/TitanSense 1203
